GPS receiver module/GPS antenna for BMW 3 Series E46 325Ci (2003)

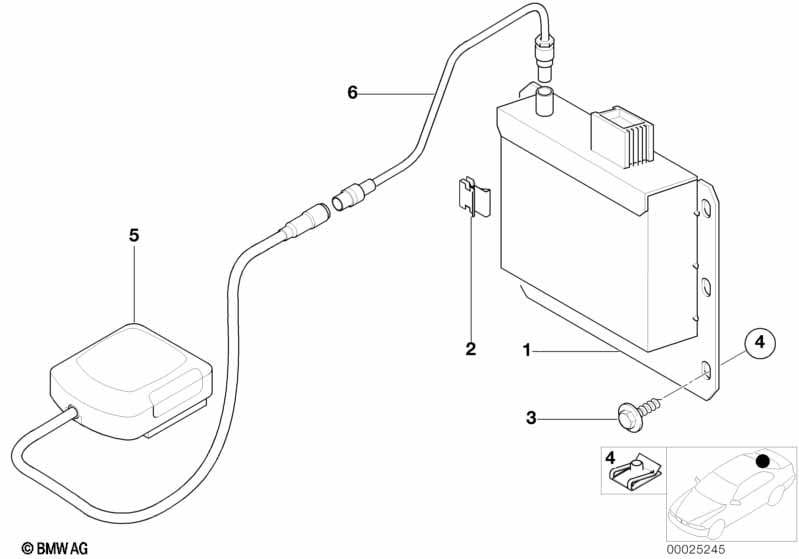

This GPS receiver module/GPS antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | GPS-receiver module | 1 | 65906905921 | ENDED | Shop at ECS Tuning | |||||
| 02 | Clamp | 1 | 07147654321 | $0.17 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 1 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Gps antenna | 1 | 65908374297 | $147.44 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci GPS receiver module/GPS antenna?
- This technical diagram illustrates the GPS receiver module/GPS antenna within the Audio, Navigation, Electronic Systems group for the 3 Series E46 325Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the GPS-receiver module (Part #65906905921).
- Which models use the hardware listed in this GPS receiver module/GPS antenna?
- The hardware and components featured in the GPS receiver module/GPS antenna are specific to the 3 Series E46 325Ci produced during 2003. These technical specifications ensure that parts like the GPS-receiver module (65906905921) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GPS receiver module/GPS antenna assembly?
- Each item in the GPS receiver module/GPS antenna corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the GPS-receiver module by locating its position on the schematic, which then links to the official BMW part number 65906905921 for the Audio, Navigation, Electronic Systems section.
