GPS computer / video module for BMW 3 Series E46 328i (2000)

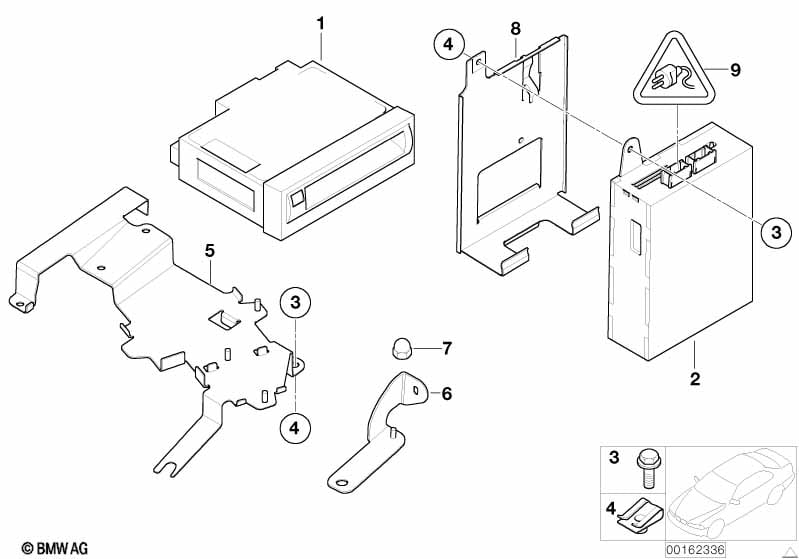

This GPS computer / video module technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. navigation computer III | 1 | 05/2000 | 12/2000 | 65906908530 | $2134.83 | ENDED | Shop at ECS Tuning | ||
| 01 | Navigation computer III | 1 | 05/2000 | 09/2001 | 65906915036 | $2560.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | von BMW nicht lieferbar, Lokalteil Japan | 1 | 84210300310 | ENDED | Shop at ECS Tuning | |||||
| 02 | Video-module, high, uncoded | 1 | 09/1998 | 09/2004 | 65509149315 | $765.19 | ENDED | Shop at ECS Tuning | ||
| 02 | RP REMAN video module high uncoded | 1 | 09/1998 | 09/2004 | 65509178796 | $783.51 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 1 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 09 | Universal socket housing uncoded | 18 POL. | 2 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 2 | 61132471241 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
