Antenna for BMW 1502-2002tii 2000 (1972)

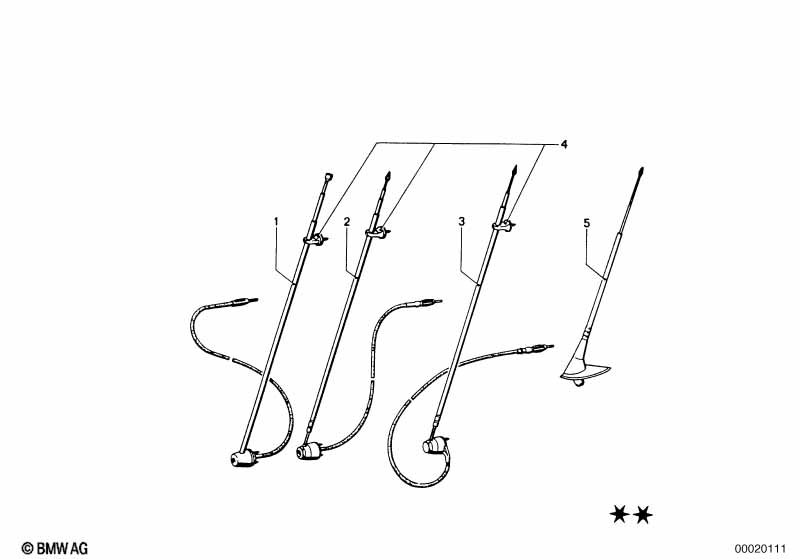

This Antenna technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Disappearing antenna | 1 | 02/1962 | 07/1977 | 65219557147 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna | 1 | 02/1962 | 07/1977 | 65211350776 | $63.81 | ENDED | Shop at ECS Tuning | ||
| 04 | Support | 1 | 02/1962 | 07/1977 | 65211350778 | ENDED | Shop at ECS Tuning | |||
| 04 | Support | 1 | 02/1962 | 07/1977 | 65219557132 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2000 Antenna?
- This technical diagram illustrates the Antenna within the Audio, Navigation, Electronic Systems group for the 1502-2002tii 2000 produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Disappearing antenna (Part #65219557147).
- Which models use the hardware listed in this Antenna?
- The hardware and components featured in the Antenna are specific to the 1502-2002tii 2000 produced during 1972. These technical specifications ensure that parts like the Disappearing antenna (65219557147) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna assembly?
- Each item in the Antenna corresponds to the numbered list below the illustration. For the 1502-2002tii 2000, you can identify the Disappearing antenna by locating its position on the schematic, which then links to the official BMW part number 65219557147 for the Audio, Navigation, Electronic Systems section.
