Information display for BMW 7 Series E38 730d (2001)

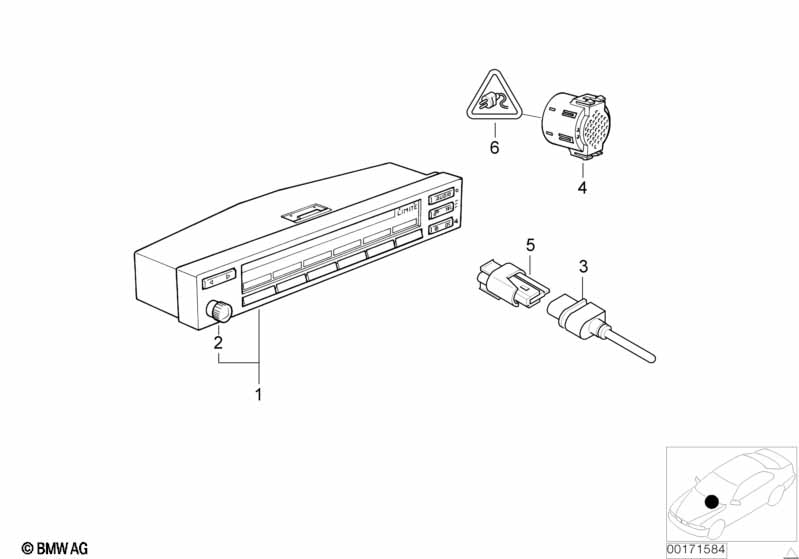

This Information display technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO RADIO/ON BORD COMPUTER/TELEPHONE |
||||||||||
| 01 | Information display | 1 | 65826914939 | $852.89 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO/CLOCK |
||||||||||
| 01 | Information display | 1 | 65826914939 | $852.89 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO/ON BORD COMPUTER |
||||||||||
| 01 | Information display | 1 | 65826914939 | $852.89 | Shop at ECS Tuning | |||||
| For vehicles with On-board computer |
=Yes |
|||||||||
| 01 | Information display | 1 | 65826914939 | $852.89 | Shop at ECS Tuning | |||||
| 02 | Button | 1 | 65828361340 | $8.89 | ENDED | Shop at ECS Tuning | ||||
| 03 | Outside temperature sensor | 1 | 65816936953 | Shop at ECS Tuning | ||||||
| 04 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 05 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
| 06 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
