Electric parts airbag for BMW 7 Series E38 740i (1996)

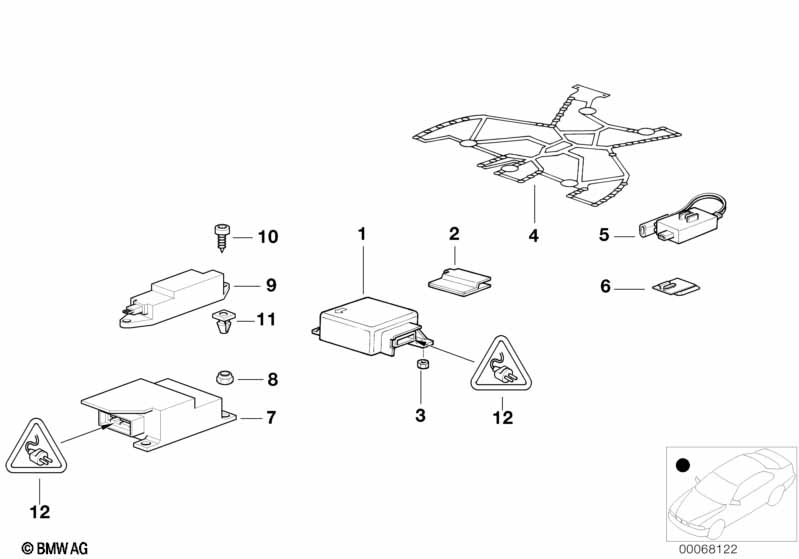

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag, uncoded | 1 | 03/1996 | 65778374821 | $459.08 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M6-10 ZN | 3 | 07/2001 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 03 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Sensor mat f co-driver's seat identif. | 1 | 65776949788 | $124.53 | Shop at ECS Tuning | |||||
| For vehicles with Contour seat or Sports seat |
=Yes =Yes |
|||||||||
| 04 | Sensor mat f co-driver's seat identif. | 1 | 65776949787 | $124.53 | Shop at ECS Tuning | |||||
| 05 | Control electronics, seat occupancy | 1 | 65776940191 | $73.00 | Shop at ECS Tuning | |||||
| 06 | Bracket, plug connection black | 1 | 61138362116 | $1.28 | Shop at ECS Tuning | |||||
| 12 | Socket housing | 30 POL BLAU | 1 | 03/1996 | 61138352528 | $7.45 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering cap | 30 POL. ORANGE | 1 | 03/1996 | 61138352522 | $2.60 | Shop at ECS Tuning | |||
| -- | Lock | WEISS | 1 | 03/1996 | 61138365936 | $0.37 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
