on board monitor / TV amplifier for BMW 7 Series E38 740d (2001)

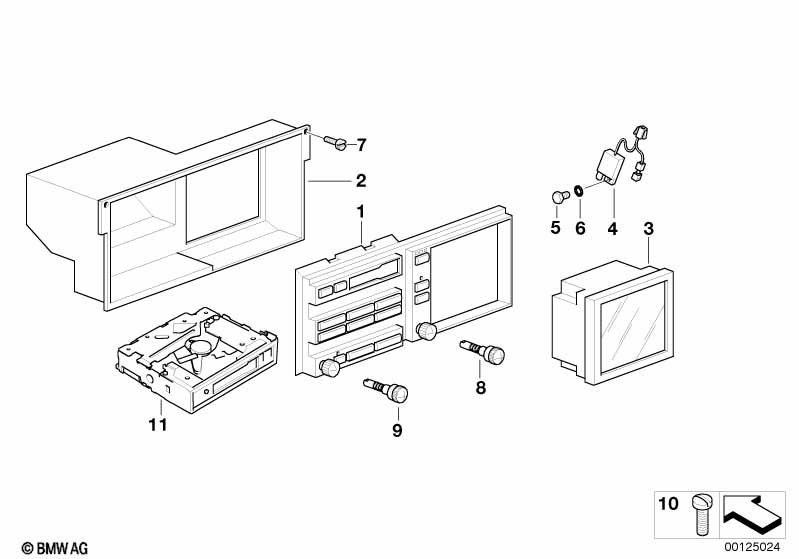

This on board monitor / TV amplifier technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Right TV amplifier | SCHWARZ | 1 | 65248375224 | $70.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Left TV amplifier | SCHWARZ | 1 | 65248375225 | $70.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Insulation glass |
=Yes |
|||||||||
| 04 | Right TV amplifier | GRUEN | 1 | 65248375228 | $78.40 | ENDED | Shop at ECS Tuning | |||
| 04 | Left TV amplifier | GRUEN | 1 | 65248375229 | $78.40 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M5X15 | 2 | 84318361762 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Tooth washer | A6,4 | 2 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M3X8 | X | 07119900255 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 10 | Countersunk screw | M3X8-4.8-H-ZNFE | 4 | 07119904046 | $0.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740d on board monitor / TV amplifier?
- This technical diagram illustrates the on board monitor / TV amplifier within the Audio, Navigation, Electronic Systems group for the 7 Series E38 740d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Right TV amplifier (Part #65248375224).
- Which models use the hardware listed in this on board monitor / TV amplifier?
- The hardware and components featured in the on board monitor / TV amplifier are specific to the 7 Series E38 740d produced during 2001. These technical specifications ensure that parts like the Right TV amplifier (65248375224) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the on board monitor / TV amplifier assembly?
- Each item in the on board monitor / TV amplifier corresponds to the numbered list below the illustration. For the 7 Series E38 740d, you can identify the Right TV amplifier by locating its position on the schematic, which then links to the official BMW part number 65248375224 for the Audio, Navigation, Electronic Systems section.
