Navigation system/video module for BMW 7 Series E38 735i (1998)

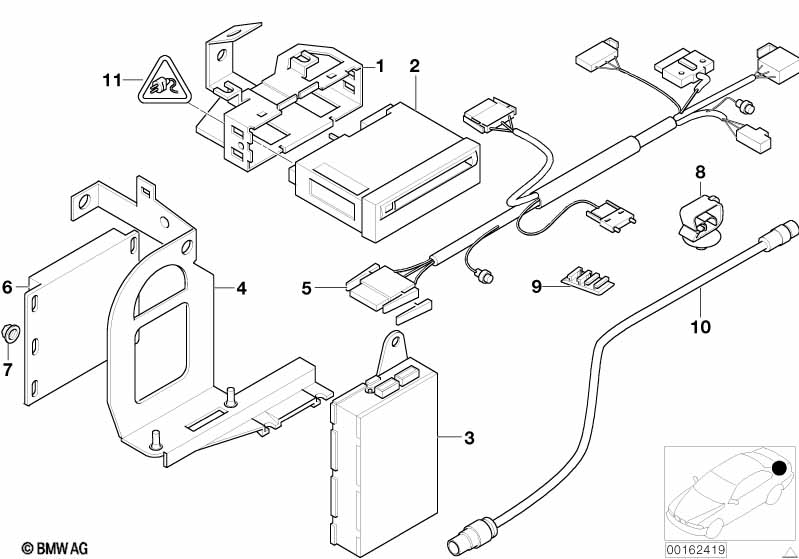

This Navigation system/video module technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support bracket, navigation computer | 1 | 11/1994 | 65908369053 | $22.52 | Shop at ECS Tuning | ||||
| 02 | RP REMAN navigation CD computer | MK II | 1 | 09/1997 | 04/1999 | 65906908313 | $2482.94 | ENDED | Shop at ECS Tuning | |
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Navigation computer high | 1 | 09/1997 | 65906925449 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Exch. video module, high, uncoded | 1 | 09/1997 | 65508385959 | $770.04 | ENDED | Shop at ECS Tuning | |||
| 03 | RP REMAN video module high uncoded | 1 | 09/1997 | 65509178796 | $783.51 | ENDED | Shop at ECS Tuning | |||
| 03 | RP REMAN video module high uncoded | 1 | 09/1997 | 65506900858 | $664.02 | ENDED | Shop at ECS Tuning | |||
| WHEN ORDERING INDICATE CENTRAL CODING | ||||||||||
| For vehicles with Rear display screen |
S603A=Yes |
|||||||||
| 03 | Video-module III | 1 | 65506924752 | $1574.33 | Shop at ECS Tuning | |||||
| 04 | Bracket for video module | 1 | 65508375131 | $12.57 | Shop at ECS Tuning | |||||
| 05 | Connecting lead, navigation | 1 | 09/1997 | 09/2000 | 61128377432 | $64.00 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Connecting lead, navigation | 1 | 09/1997 | 61128374339 | ENDED | Shop at ECS Tuning | ||||
| 06 | GPS-receiver module | 1 | 09/1997 | 09/2000 | 65908385141 | $752.98 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | GPS-receiver module | 1 | 09/1997 | 65906905921 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut | AM5-8-ZNNIV SI | 2 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X14-8.8-ZNNIV | 2 | 09/1997 | 07119904269 | $0.36 | Shop at ECS Tuning | |||
| 09 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 10 | Antenna cable GPS | 1350MM | 1 | 61128377434 | $44.33 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 18 POL. | 2 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 2 | 61132471241 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 735i Navigation system/video module?
- This technical diagram illustrates the Navigation system/video module within the Audio, Navigation, Electronic Systems group for the 7 Series E38 735i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Support bracket, navigation computer (Part #65908369053).
- Which models use the hardware listed in this Navigation system/video module?
- The hardware and components featured in the Navigation system/video module are specific to the 7 Series E38 735i produced during 1998. These technical specifications ensure that parts like the Support bracket, navigation computer (65908369053) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Navigation system/video module assembly?
- Each item in the Navigation system/video module corresponds to the numbered list below the illustration. For the 7 Series E38 735i, you can identify the Support bracket, navigation computer by locating its position on the schematic, which then links to the official BMW part number 65908369053 for the Audio, Navigation, Electronic Systems section.
