Subwoofer hifi system Harman Kardon for BMW 3 Series E46 325Ci (2003)

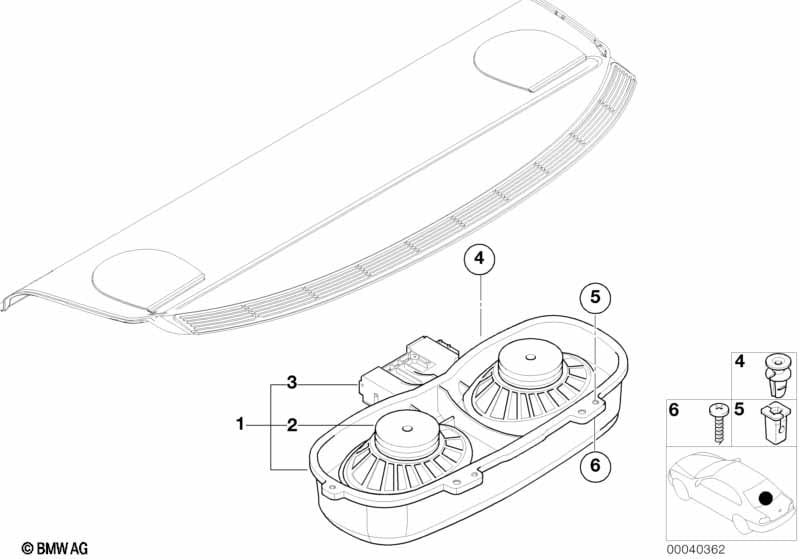

This Subwoofer hifi system Harman Kardon technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The wiring for the loudspeakers is included in loudspeaker wiring harness |
|||||||||
| 01 | Subwooferbox top-hifi system | HARMAN KARDON | 1 | 65126946986 | $802.13 | Shop at ECS Tuning | ||||
| 02 | Subwoofer top-hifi system | HARMAN KARDON | 2 | 65138374894 | $102.87 | Shop at ECS Tuning | ||||
| 03 | Amplifier subwoofer | HARMAN KARDON | 1 | 65136946987 | $601.50 | Shop at ECS Tuning | ||||
| 04 | Clamp | 2 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | ST 4.8 | 6 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw with washer | ST 4,8X19 | 6 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Subwoofer hifi system Harman Kardon?
- This technical diagram illustrates the Subwoofer hifi system Harman Kardon within the Audio, Navigation, Electronic Systems group for the 3 Series E46 325Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Subwooferbox top-hifi system (Part #65126946986).
- Which models use the hardware listed in this Subwoofer hifi system Harman Kardon?
- The hardware and components featured in the Subwoofer hifi system Harman Kardon are specific to the 3 Series E46 325Ci produced during 2003. These technical specifications ensure that parts like the Subwooferbox top-hifi system (65126946986) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Subwoofer hifi system Harman Kardon assembly?
- Each item in the Subwoofer hifi system Harman Kardon corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Subwooferbox top-hifi system by locating its position on the schematic, which then links to the official BMW part number 65126946986 for the Audio, Navigation, Electronic Systems section.
