CD changer mounting parts for BMW 3 Series E46 325xi (2001)

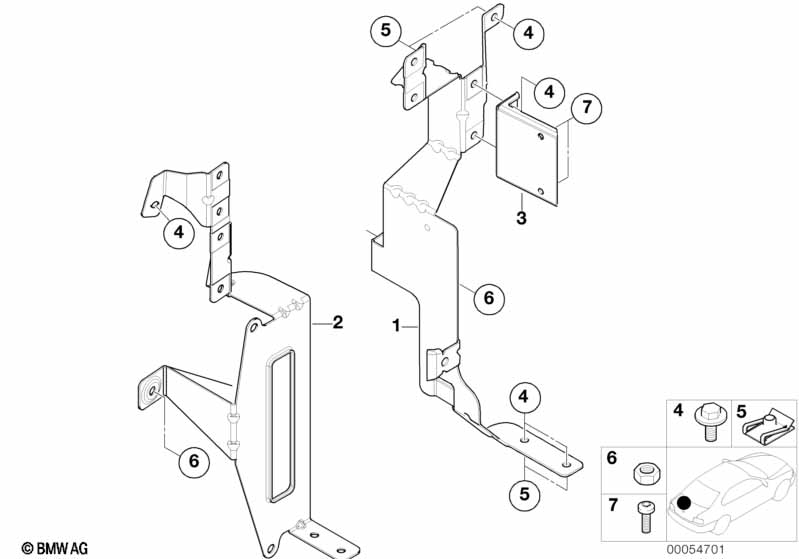

This CD changer mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base support system, front | 1 | 65128378013 | $16.59 | Shop at ECS Tuning | |||||
| 02 | Base support system, rear | 1 | 65128378014 | $16.59 | Shop at ECS Tuning | |||||
| 03 | Bracket CD-changer | 2 | 65128370925 | $3.90 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M5X14 | 10 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 9 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | M4X6 | 4 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 07 | Countersunk screw | M4X6 | 4 | 07119904307 | $0.09 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi CD changer mounting parts?
- This technical diagram illustrates the CD changer mounting parts within the Audio, Navigation, Electronic Systems group for the 3 Series E46 325xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Base support system, front (Part #65128378013).
- Which models use the hardware listed in this CD changer mounting parts?
- The hardware and components featured in the CD changer mounting parts are specific to the 3 Series E46 325xi produced during 2001. These technical specifications ensure that parts like the Base support system, front (65128378013) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the CD changer mounting parts assembly?
- Each item in the CD changer mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Base support system, front by locating its position on the schematic, which then links to the official BMW part number 65128378013 for the Audio, Navigation, Electronic Systems section.
