amplifier/holder Harman Kardon hifi for BMW 3 Series E46 320d (2001)

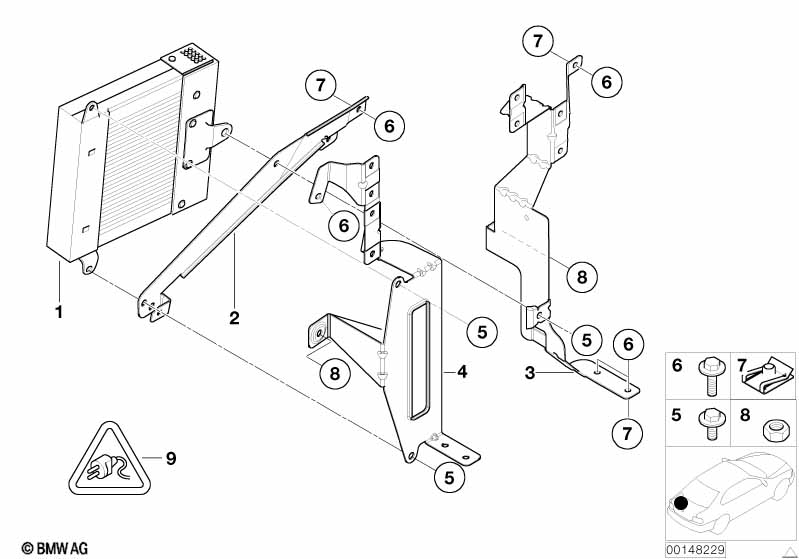

This amplifier/holder Harman Kardon hifi technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier Hifi Harman Kardon | 1 | 65126921050 | $789.57 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket, amplifier hifi/telephone | D-NETZ | 1 | 65128378012 | $7.90 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 03 | Base support system, front | 1 | 65128378013 | $16.59 | Shop at ECS Tuning | |||||
| 04 | Base support system, rear | 1 | 65128378014 | $16.59 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X10-Z1 | 3 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 06 | Hex bolt | M5X14 | 6 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 07 | Body nut | M5 | 5 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Universal cover cap, uncoded | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket housing, black | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
| -- | Socket housing, grey | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
