Stereo system, rear for BMW 3 Series E46 320d (2001)

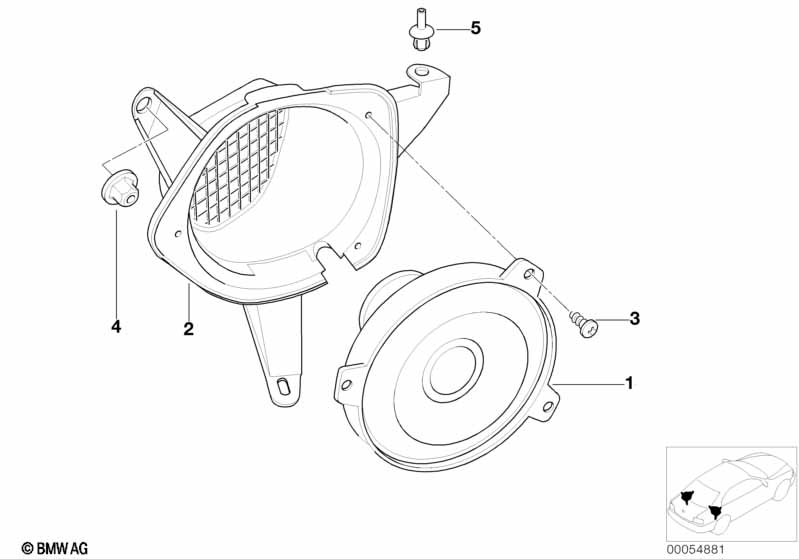

This Stereo system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | broadband loudspeaker stereo system | 50-10.000HZ | 2 | 65138368233 | $45.28 | Shop at ECS Tuning | ||||
| 02 | Adaptor right | STEREO/HIFI | 1 | 65138381560 | $25.42 | Shop at ECS Tuning | ||||
| 02 | Adaptor left | STEREO/HIFI | 1 | 65138381561 | $25.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,2X13MM | 6 | 07146977198 | $0.08 | Shop at ECS Tuning | ||||
| 04 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Stereo system, rear?
- This technical diagram illustrates the Stereo system, rear within the Audio, Navigation, Electronic Systems group for the 3 Series E46 320d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the broadband loudspeaker stereo system (Part #65138368233).
- Which models use the hardware listed in this Stereo system, rear?
- The hardware and components featured in the Stereo system, rear are specific to the 3 Series E46 320d produced during 2001. These technical specifications ensure that parts like the broadband loudspeaker stereo system (65138368233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stereo system, rear assembly?
- Each item in the Stereo system, rear corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the broadband loudspeaker stereo system by locating its position on the schematic, which then links to the official BMW part number 65138368233 for the Audio, Navigation, Electronic Systems section.
