Hi-Fi System, rear for BMW 3 Series E46 320d (2005)

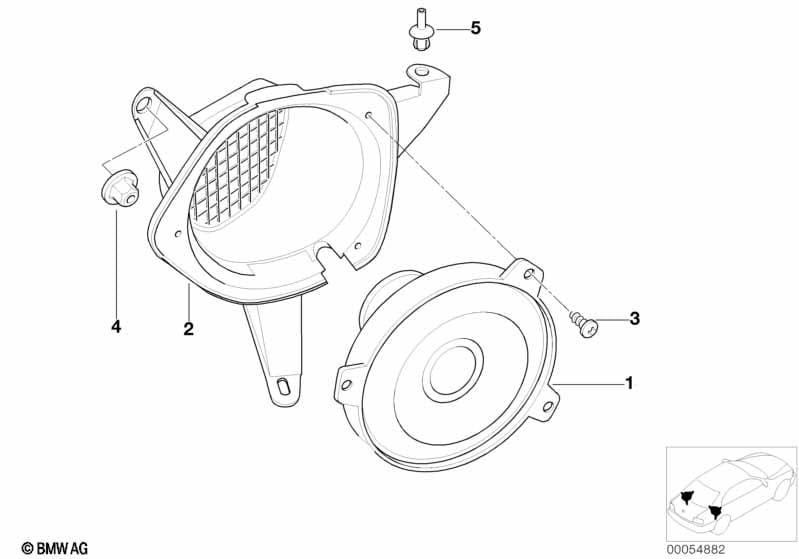

This Hi-Fi System, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | bass loudspeaker hifi system | 50-7.000HZ | 2 | 65138368238 | $46.35 | Shop at ECS Tuning | ||||
| 02 | Adaptor right | STEREO/HIFI | 1 | 65138381560 | $25.42 | Shop at ECS Tuning | ||||
| 02 | Adaptor left | STEREO/HIFI | 1 | 65138381561 | $25.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,2X13MM | 6 | 07146977198 | $0.08 | Shop at ECS Tuning | ||||
| 04 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
