Antenna-Diversity for BMW 3 Series E46 320d (2001)

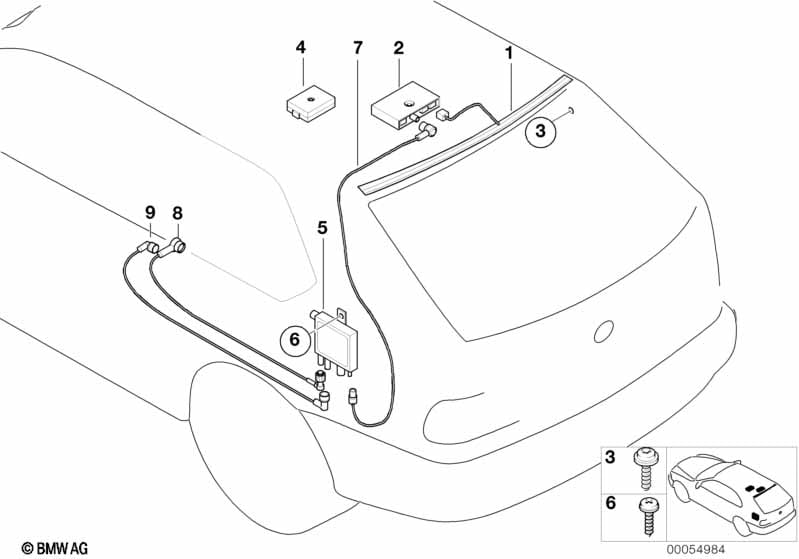

This Antenna-Diversity technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna | 1 | 65248380946 | $21.04 | Shop at ECS Tuning | |||||
| 02 | Amplifier f rear window antenna | 433MHZ | 1 | 65248377815 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Suppression filter | 1 | 65206949922 | $50.95 | Shop at ECS Tuning | |||||
| 05 | Side window antenna amplifier | 1 | 03/2001 | 65256906071 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV or Navigation system, radio or Navigation system Professional |
S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 05 | Side window antenna amplifier | 1 | 09/2001 | 65258377817 | $197.28 | ENDED | Shop at ECS Tuning | |||
| 06 | Sheet metal screw | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Antenna cable Diversity ZF | 1650MM | 1 | 61116911357 | $28.98 | Shop at ECS Tuning | ||||
| 08 | Antenna cable Diversity NG | 4240MM | 1 | 03/2001 | 61126912491 | $43.08 | Shop at ECS Tuning | |||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 08 | Antenna cable Diversity | 4240MM | 1 | 06/2000 | 09/2001 | 61126900957 | $29.40 | Shop at ECS Tuning | ||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 08 | Antenna cable Diversity | 1980MM | 1 | 09/2001 | 61126900956 | $27.90 | Shop at ECS Tuning | |||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 08 | Antenna cable Diversity | 4240MM | 1 | 09/2001 | 61126900957 | $29.40 | Shop at ECS Tuning | |||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 09 | Antenna cable Diversity ZF | 4220MM | 1 | 06/2000 | 09/2001 | 61126900955 | $29.40 | Shop at ECS Tuning | ||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 09 | Antenna cable Diversity ZF | 2000MM | 1 | 09/2001 | 61126900954 | $27.90 | Shop at ECS Tuning | |||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 09 | Antenna cable Diversity ZF | 4220MM | 1 | 09/2001 | 61126900955 | $29.40 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
