Antenna-Diversity for BMW 3 Series E46 325Ci (2006)

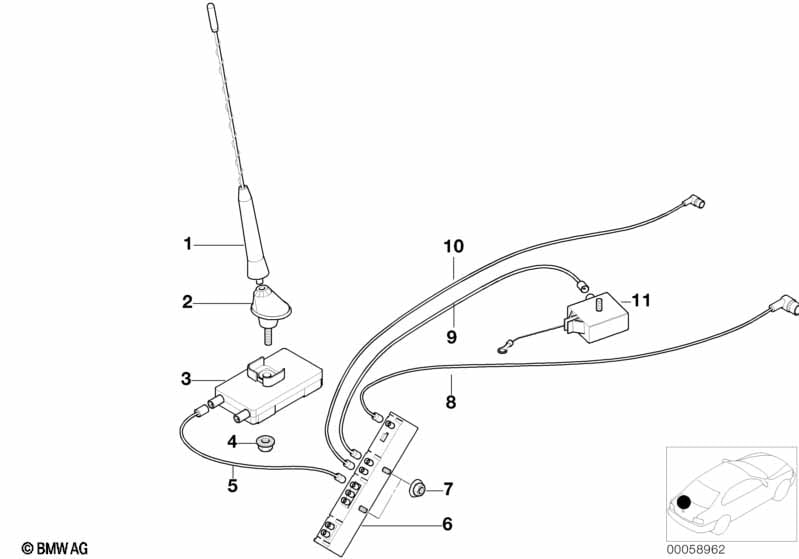

This Antenna-Diversity technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna rod f short rod antenna | 1 | 65206902689 | $37.88 | Shop at ECS Tuning | |||||
| 02 | Antenna head, short rod antenna | 1 | 65206909605 | $13.60 | Shop at ECS Tuning | |||||
| 03 | Aerial base, short rod aerial AM/FM | 1 | 65206909606 | $145.62 | Shop at ECS Tuning | |||||
| 04 | Locknut | M5 | 1 | 07149149279 | $0.56 | Shop at ECS Tuning | ||||
| 05 | Antenna cable | 570MM | 1 | 61126904064 | $28.15 | Shop at ECS Tuning | ||||
| 06 | Antenna amplifier Diversity | 1 | 03/2001 | 65206912817 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV and Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 06 | Antenna amplifier Diversity | 1 | 09/2001 | 65206912828 | $278.20 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio or Navigation system Professional |
S606A=Yes S609A=Yes |
|||||||||
| 06 | Antenna amplifier Diversity | 1 | 09/2001 | 65206912817 | $197.28 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Antenna cable Diversity NG | 4750MM | 1 | 03/2001 | 61126912495 | $37.30 | Shop at ECS Tuning | |||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 08 | Antenna cable Diversity NG | 4750MM | 1 | 09/2001 | 61126912495 | $37.30 | Shop at ECS Tuning | |||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 08 | Antenna cable Diversity NG | 4750MM | 1 | 09/2001 | 61126912495 | $37.30 | Shop at ECS Tuning | |||
| For vehicles with On-board monitor with TV and Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 08 | Antenna cable Diversity NG | 1320MM | 1 | 09/2001 | 61126912496 | $24.85 | Shop at ECS Tuning | |||
| 09 | Antenna cable | 1.000MM | 1 | 61126904061 | $22.58 | Shop at ECS Tuning | ||||
| 11 | Antenna amplifier FM | 1 | 65206912824 | $176.73 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
