CD changer mounting parts for BMW 3 Series E46 330Ci (2006)

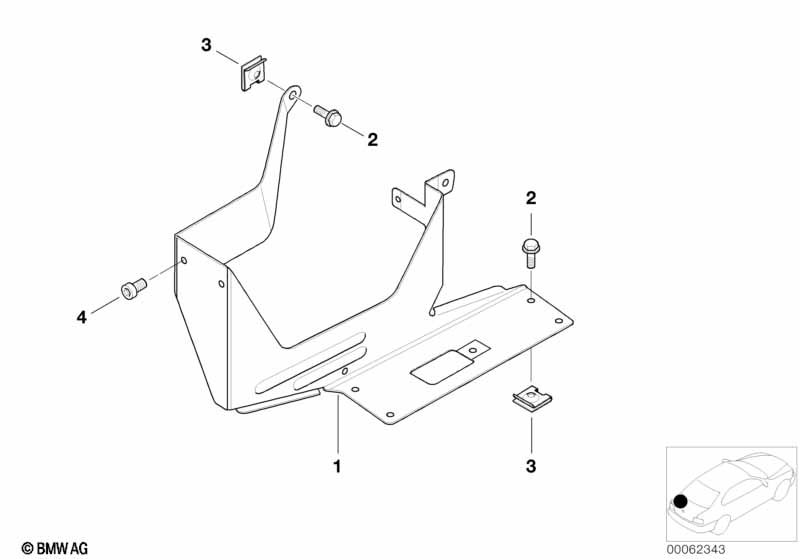

This CD changer mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer | 1 | 65128378545 | $14.50 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M5X14 | 5 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Body nut | M5 | 5 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M4X6 | 4 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 04 | Countersunk screw | M4X6 | 4 | 07119904307 | $0.09 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci CD changer mounting parts?
- This technical diagram illustrates the CD changer mounting parts within the Audio, Navigation, Electronic Systems group for the 3 Series E46 330Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Bracket CD-changer (Part #65128378545).
- Which models use the hardware listed in this CD changer mounting parts?
- The hardware and components featured in the CD changer mounting parts are specific to the 3 Series E46 330Ci produced during 2006. These technical specifications ensure that parts like the Bracket CD-changer (65128378545) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the CD changer mounting parts assembly?
- Each item in the CD changer mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Bracket CD-changer by locating its position on the schematic, which then links to the official BMW part number 65128378545 for the Audio, Navigation, Electronic Systems section.
