Loudspeaker rear hifi for BMW 3 Series E46 323Ci (2000)

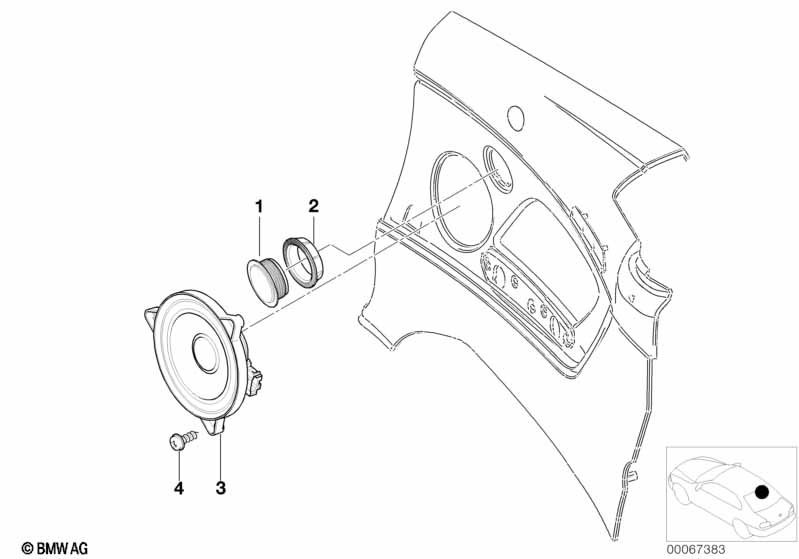

This Loudspeaker rear hifi technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The wiring for the loudspeakers is included in loudspeaker wiring harness |
|||||||||
| 01 | Tweeter stereo | SCHWARZ | 2 | 65138383972 | $45.28 | Shop at ECS Tuning | ||||
| 01 | Tweeter stereo | PERLGRAU | 2 | 65136911464 | $45.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Tweeter stereo | TITANGRAU | 2 | 65138383973 | $45.28 | Shop at ECS Tuning | ||||
| 01 | Tweeter stereo | HELLBEIGE | 2 | 65138383974 | $45.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Tweeter stereo | TANINROT | 2 | 65138383975 | $45.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Tweeter stereo | LIGHTGELB | 2 | 65138383976 | $45.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Tweeter stereo | PEACH | 2 | 65138383977 | $50.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Tweeter threaded ring | 2 | 65138360689 | $6.18 | Shop at ECS Tuning | |||||
| 03 | Loudspeaker hifi | 70-10.000HZ | 2 | 65138378556 | $45.28 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X16-Z2 | 6 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
