On-board monitor Wide Screen for BMW 5 Series E39 525d (2003)

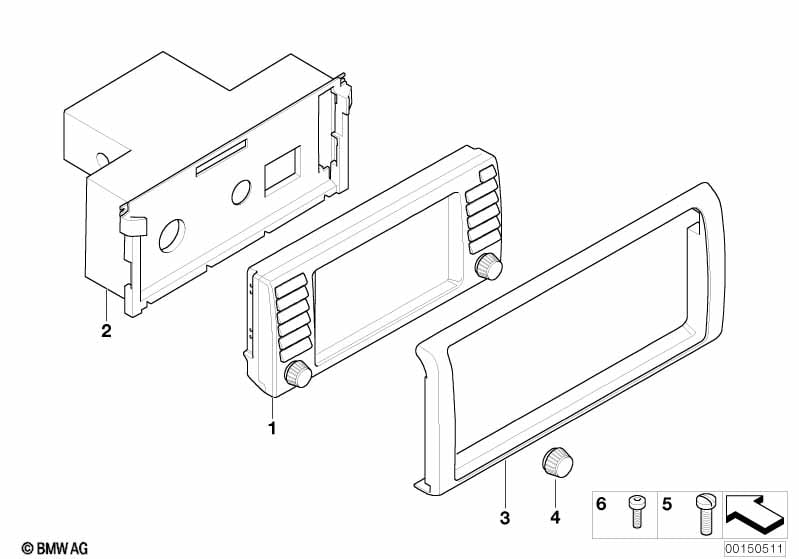

This On-board monitor Wide Screen technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | On-board monitor Wide Screen | 1 | 09/2000 | 65526934415 | $2443.88 | Shop at ECS Tuning | ||||
| 02 | Housing, on-board monitor | 1 | 09/2000 | 65526928389 | $809.78 | ENDED | Shop at ECS Tuning | |||
| 03 | Frame, on-board monitor | 1 | 09/2000 | 65528385451 | $47.47 | Shop at ECS Tuning | ||||
| 04 | Rotary knob, on-board monitor | 2 | 09/2000 | 65528385458 | $8.77 | Shop at ECS Tuning | ||||
| 05 | Countersunk screw | M3X8-4.8-H-ZNFE | 4 | 07119904046 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Screw | M2.6X10 | 4 | 65826989999 | $0.84 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
