Audio wiring harness for BMW 3 Series E46 320i (2000)

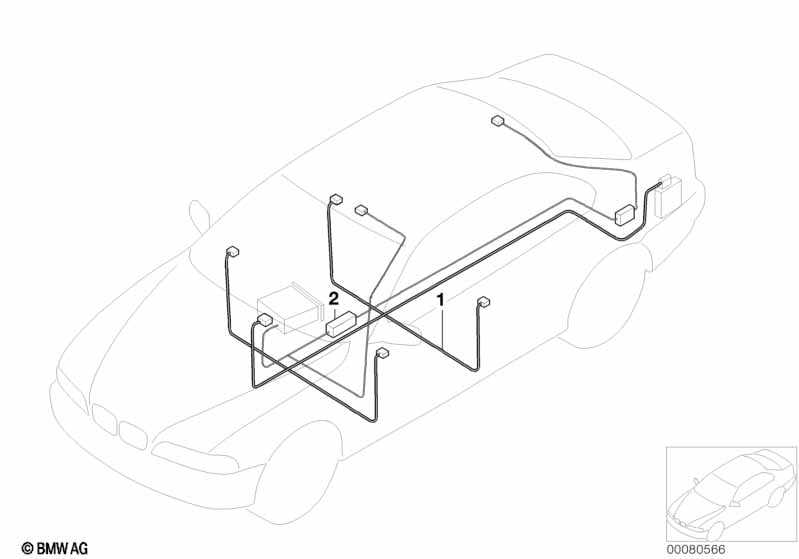

This Audio wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For all telephone optiones the audio wiring harness can only be used together with the additional wiring harness telefon (Position 2) |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 03/2001 | 61116910815 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 03/2001 | 61116910816 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 03/2001 | 61116910817 | $636.12 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 09/2000 | 61116910818 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 09/2000 | 61116910819 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 09/2000 | 61116910820 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 03/2001 | 61116910815 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 03/2001 | 61116910816 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 03/2001 | 61116910817 | $636.12 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Navigation system Professional |
S609A=Yes |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 03/2001 | 61116910821 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 03/2001 | 61116910822 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 03/2001 | 61116910823 | ENDED | Shop at ECS Tuning | |||
| For vehicles with On-board monitor with TV |
S602A=Yes |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 03/2001 | 61116910824 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 03/2001 | 61116910825 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 03/2001 | 61116910826 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Navigation system Professional Wiring harness incl. telephone provisions |
L807A=Yes S609A=Yes |
|||||||||
| 01 | Audio wiring harness Stereo | 1 | 06/2000 | 03/2001 | 61116910827 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 1 | 06/2000 | 03/2001 | 61116910828 | ENDED | Shop at ECS Tuning | |||
| 01 | Loud speaker cable harness Harman Kardon | 1 | 06/2000 | 03/2001 | 61116910829 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Prep. mobile phone USA Universal |
S641A=Yes |
|||||||||
| 02 | Additional wiring harness, telephone | 1 | 06/2000 | 03/2001 | 61116910860 | $236.59 | ENDED | Shop at ECS Tuning | ||
| Additional wiring harness f telephone can only be used in conjunction with audio wiring harness! |
||||||||||
| For vehicles with Car telephone (GSM) w card reader, front |
S629A=Yes |
|||||||||
| 02 | Additional wiring harness, telephone | 1 | 06/2000 | 03/2001 | 61116910862 | ENDED | Shop at ECS Tuning | |||
| Additional wiring harness f telephone can only be used in conjunction with audio wiring harness! |
||||||||||
| For vehicles with Prepartation BMW Handy (Nokia) |
S627A=Yes |
|||||||||
| 02 | Additional wiring harness, telephone | 1 | 06/2000 | 03/2001 | 61116910861 | ENDED | Shop at ECS Tuning | |||
| Additional wiring harness f telephone can only be used in conjunction with audio wiring harness! |
||||||||||
| For vehicles with Preparation BMW Handy (Motorola) |
S632A=Yes |
|||||||||
| 02 | Additional wiring harness, telephone | 1 | 06/2000 | 03/2001 | 61116910863 | $236.59 | ENDED | Shop at ECS Tuning | ||
| Additional wiring harness f telephone can only be used in conjunction with audio wiring harness! |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
