navigation system fittings for BMW 3 Series E46 330Ci (2006)

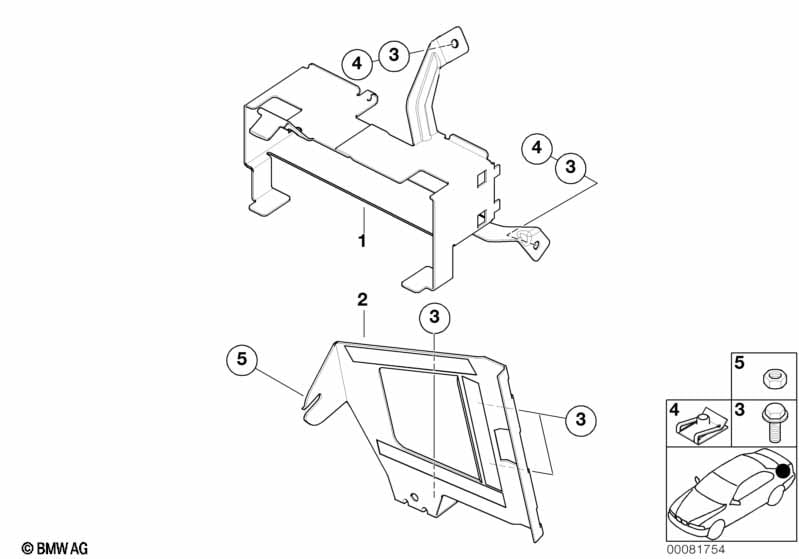

This navigation system fittings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support bracket, navigation computer | 1 | 65906904195 | $15.03 | Shop at ECS Tuning | |||||
| 02 | Bracket f on bord monitor radio | 1 | 65128378546 | $11.04 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 3 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M5 | 1 | 63259128043 | $0.72 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci navigation system fittings?
- This technical diagram illustrates the navigation system fittings within the Audio, Navigation, Electronic Systems group for the 3 Series E46 330Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Support bracket, navigation computer (Part #65906904195).
- Which models use the hardware listed in this navigation system fittings?
- The hardware and components featured in the navigation system fittings are specific to the 3 Series E46 330Ci produced during 2006. These technical specifications ensure that parts like the Support bracket, navigation computer (65906904195) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the navigation system fittings assembly?
- Each item in the navigation system fittings corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Support bracket, navigation computer by locating its position on the schematic, which then links to the official BMW part number 65906904195 for the Audio, Navigation, Electronic Systems section.
