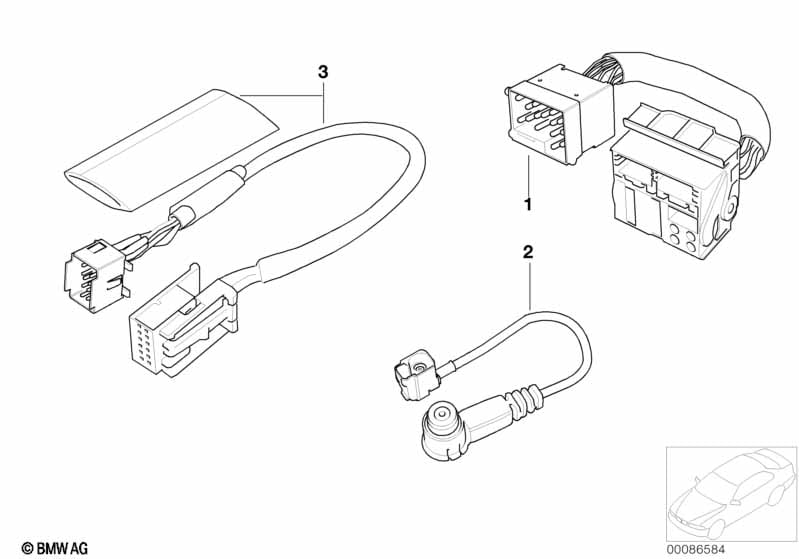

Radio adapter wiring for BMW 5 Series E39 528i (1999)
This Radio adapter wiring technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Conversion for radios with new 16-pin plug system in cars with earlier plug configuration(up to 10/00) Aerial amplifier to be ordered separately. |
|||||||||
| 01 | Adapter cable, radio | 1 | 61126913957 | $67.87 | Shop at ECS Tuning | |||||
| 02 | Antenna adapter tubing | 1 | 61126913955 | $33.05 | Shop at ECS Tuning | |||||
| 03 | Adapter cable, CD changer | 1 | 61126913954 | $22.63 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shrinking hose | 100MM | 1 | 61130029658 | $9.02 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Radio adapter wiring?
- This technical diagram illustrates the Radio adapter wiring within the Audio, Navigation, Electronic Systems group for the 5 Series E39 528i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Adapter cable, radio (Part #61126913957).
- Which models use the hardware listed in this Radio adapter wiring?
- The hardware and components featured in the Radio adapter wiring are specific to the 5 Series E39 528i produced during 1999. These technical specifications ensure that parts like the Adapter cable, radio (61126913957) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio adapter wiring assembly?
- Each item in the Radio adapter wiring corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Adapter cable, radio by locating its position on the schematic, which then links to the official BMW part number 61126913957 for the Audio, Navigation, Electronic Systems section.
