Antenna cable, Audio/Video for BMW 7 Series E38 730iL (1996)

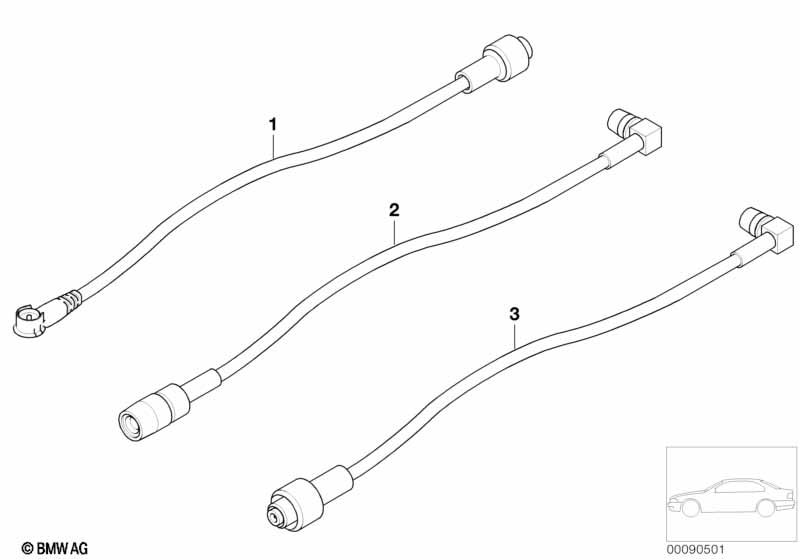

This Antenna cable, Audio/Video technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 01 | Antenna cable, Audio/Video | 1490MM | 1 | 61126916287 | $59.03 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| For vehicles with On-board monitor with TV and Navigation system Professional |
S602A=No S609A=No |
|||||||||
| 01 | Antenna cable, Audio/Video | 3910MM | 1 | 61126916288 | $57.47 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| ONLY APPLIES TO ON BORD MONITOR | ||||||||||
| 02 | Antenna cable, Audio/Video | 1460MM | 1 | 61126916290 | $59.03 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| For vehicles without on-board monitor | ||||||||||
| 02 | Antenna cable, Audio/Video | 3900MM | 1 | 61126916291 | $59.03 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| 03 | Antenna cable, Audio/Video | 1515MM | 1 | 61126916295 | $59.03 | ENDED | Shop at ECS Tuning | |||
| TV - video | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
