Antenna cable, Audio/Video for BMW 5 Series E39 530i (2003)

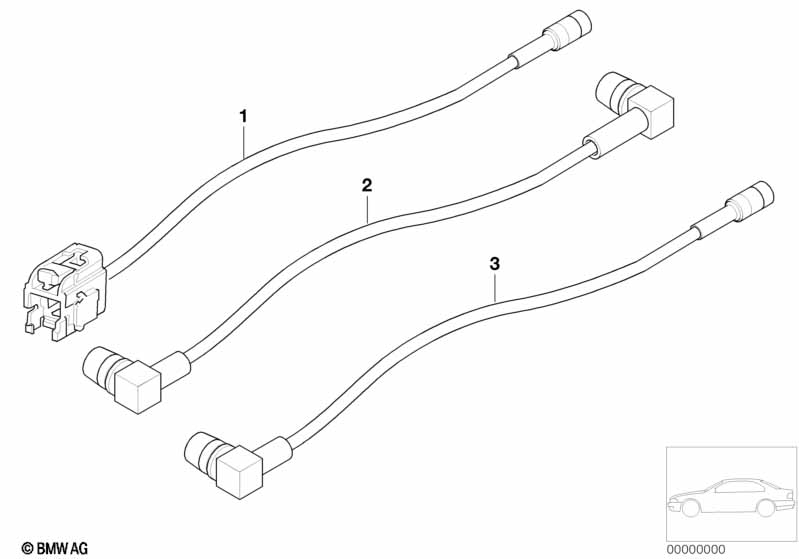

This Antenna cable, Audio/Video technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 01 | Antenna cable, Audio/Video | 1420MM | 1 | 61126916308 | $59.03 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| For vehicles with On-board monitor with TV and Navigation system Professional |
S602A=No S609A=No |
|||||||||
| 01 | Antenna cable, Audio/Video | 4830MM | 1 | 61126916307 | $59.03 | ENDED | Shop at ECS Tuning | |||
| Radio - Diversity | ||||||||||
| 02 | Antenna cable, Audio/Video | 2670MM | 1 | 61126916309 | $59.03 | Shop at ECS Tuning | ||||
| TV - video | ||||||||||
| 03 | Antenna cable, Audio/Video | 1360MM | 1 | 61126916311 | $59.03 | ENDED | Shop at ECS Tuning | |||
| DSP - CD | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
