Amplifier hifi system for BMW 3 Series E46 316ti (2004)

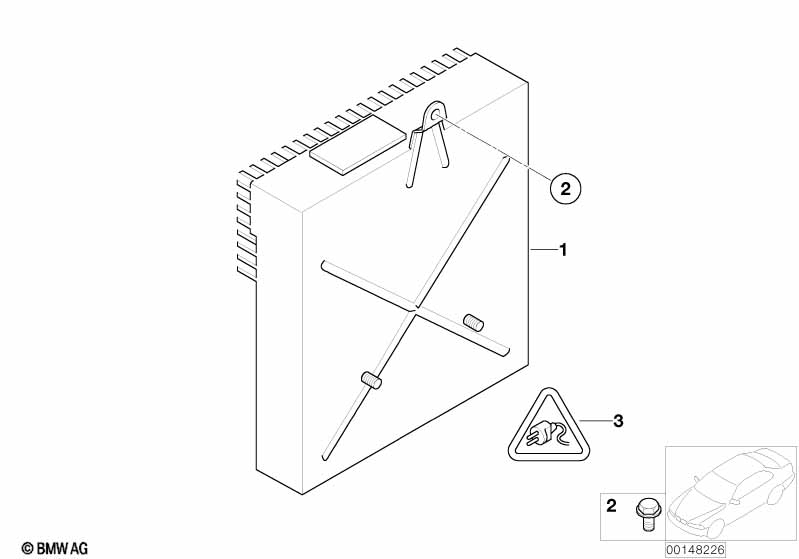

This Amplifier hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.

Amplifier hifi system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Amplifier hifi system 1 65128380626 Shop at ECS Tuning
02 Hex bolt M6X10 1 07119903842 $0.45 Shop at ECS Tuning
03 Universal cover cap, uncoded 42 POL. 1 61138364810 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2- 0,5 QMM 1 61130005197 $1.65 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 1 61130056960 Shop at ECS Tuning
-- Socket contact ELO-Power 2,8x0,63 2,5-4,0 MM 1 61136913612 $0.50 Shop at ECS Tuning
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² 1 61138364832 $0.35 Shop at ECS Tuning
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 1 61138364834 $0.35 Shop at ECS Tuning
-- Socket housing, black 21 POL. 1 61138364882 $1.30 Shop at ECS Tuning
-- Socket housing, grey 21 POL. 1 61138364884 $1.30 Shop at ECS Tuning
-- Socket contact ELO-Power 2,8x0,63 0,35-0,5 MM² SN 1 61138377162 $0.35 Shop at ECS Tuning
