Navigation computer/bracket for BMW 3 Series E46 318ti (2004)

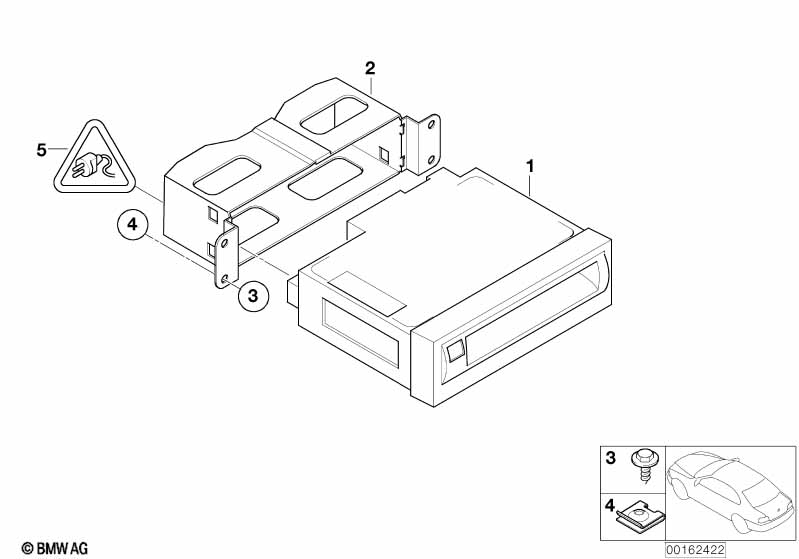

This Navigation computer/bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. navigation computer | 1 | 09/2002 | 03/2006 | 65906972752 | $1892.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. navigation computer | 1 | 09/2002 | 12/2006 | 65909115033 | $1892.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. navigation computer | 1 | 09/2002 | 03/2008 | 65909154053 | $2329.17 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN navigation computer | 1 | 09/2002 | 65909176686 | $2672.90 | ENDED | Shop at ECS Tuning | |||
| 01 | Navigation computer | 1 | 09/2002 | 65905A505F6 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 01 | RP REMAN navigation computer | M.C. DISPLAY | 1 | 09/2002 | 65908798524 | ENDED | Shop at ECS Tuning | |||
| 02 | Support bracket, navigation computer | 1 | 65908370933 | $6.29 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 4 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Universal socket housing uncoded | 18 POL. | 2 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 2 | 61132471241 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
