Alarm systems for BMW 5 Series E34 525td (1995)

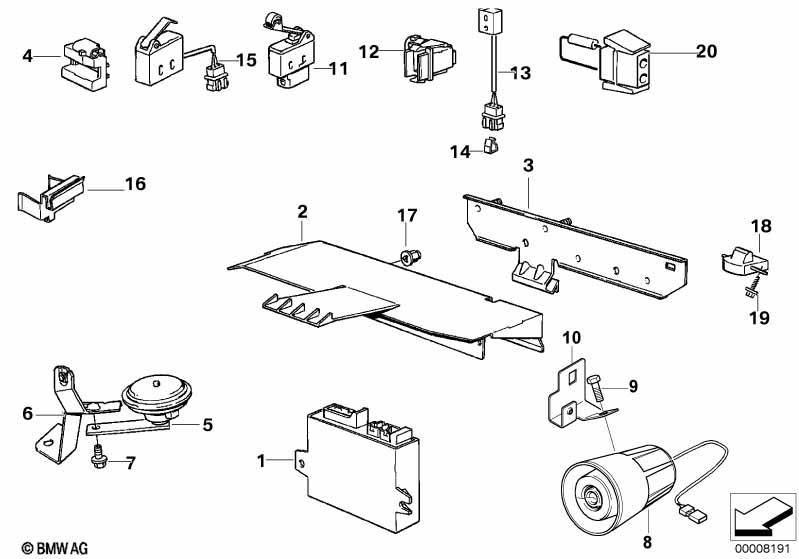

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Alarm system |
=Yes |
|||||||||
| 01 | Ultrason.control unit DWA without code | DWA 4 | 1 | 09/1990 | 65758366229 | $312.24 | Shop at ECS Tuning | |||
| 04 | Radiocontact | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 05 | Horn | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 06 | Bracket horn | 1 | 65811378029 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Switch | 1 | 61311388037 | $12.72 | ENDED | Shop at ECS Tuning | ||||
| 13 | Microswitch | 1 | 61311391980 | $38.47 | Shop at ECS Tuning | |||||
| 14 | Microswitch clip | 1 | 61311374027 | $0.30 | Shop at ECS Tuning | |||||
| 15 | Microswitch | 1 | 65751391850 | $50.14 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bracket micro switch | 1 | 65711378069 | $2.88 | Shop at ECS Tuning | |||||
| 18 | Tell-tale | 1 | 65751378785 | $98.95 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO INFRARED | ||||||||||
| 18 | Tell-tale | 1 | 65751378785 | $98.95 | ENDED | Shop at ECS Tuning | ||||
| 18 | Tell-tale | 1 | 66101379255 | $158.47 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | L=12MM | 2 | 51261377144 | $0.39 | Shop at ECS Tuning | ||||
| 20 | Connection piece | 1 | 61121382630 | $7.03 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
