Alarm systems for BMW 3 Series E30 318i (1987)

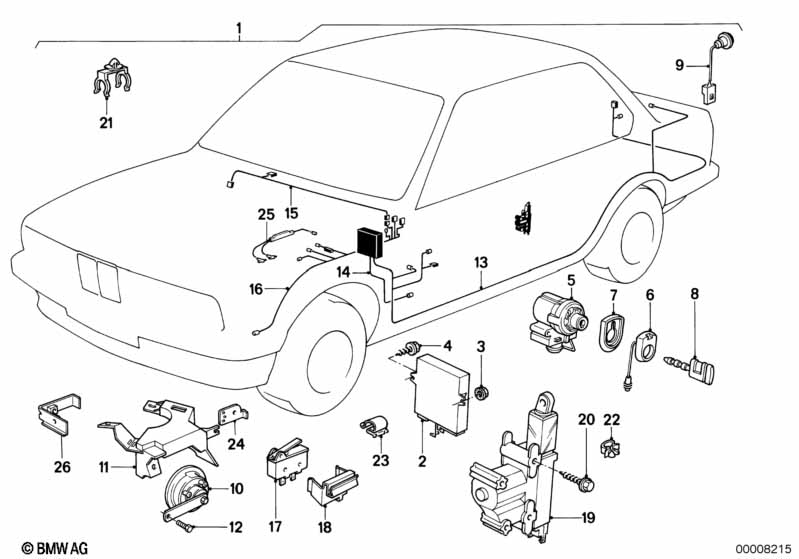

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 02 | Control unit theft alarm | 1 | 65751386606 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex nut | 1 | 61131372722 | $0.28 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | L=12MM | 1 | 09/1986 | 51261377144 | $0.39 | Shop at ECS Tuning | |||
| 05 | Lock | 1 | 65751368904 | $451.53 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 65751368903 | $82.21 | Shop at ECS Tuning | |||||
| 07 | Base | 1 | 65751368912 | $8.80 | Shop at ECS Tuning | |||||
| 08 | Key theft alarm | 1 | 65751380684 | $83.09 | Shop at ECS Tuning | |||||
| 09 | Tell-tale | 1 | 65751369412 | $56.07 | ENDED | Shop at ECS Tuning | ||||
| 10 | Horn | HELLA 335HZ | 1 | 09/1986 | 61331379090 | $61.15 | Shop at ECS Tuning | |||
| 12 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Wiring theft alarm | 1 | 09/1987 | 61121375609 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wiring theft alarm | 1 | 09/1984 | 61121380488 | $79.10 | Shop at ECS Tuning | ||||
| 15 | Wiring theft alarm | 1 | 09/1987 | 61121375607 | ENDED | Shop at ECS Tuning | ||||
| 16 | Wiring theft alarm/bordcomputer | 1 | 09/1986 | 09/1987 | 61121381207 | $79.10 | ENDED | Shop at ECS Tuning | ||
| 18 | Bracket micro switch | 1 | 65711378069 | $2.88 | Shop at ECS Tuning | |||||
| 19 | Drive | 2 | 51261375111 | $117.25 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt with washer | L=20,8MM | 4 | 51261372068 | $4.23 | ENDED | Shop at ECS Tuning | |||
| 21 | Holder | D = 13MM | 1 | 61131371074 | $2.52 | ENDED | Shop at ECS Tuning | |||
| 22 | Cable holder | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 23 | Cable clamp | D=15/B=4 | 1 | 61131353866 | $0.50 | Shop at ECS Tuning | ||||
| 24 | Bracket micro switch | 1 | 65811377861 | ENDED | Shop at ECS Tuning | |||||
| 25 | Wire signal horn | 1 | 61121380016 | $46.71 | ENDED | Shop at ECS Tuning | ||||
