Alarm systems for BMW 3 Series E36 318ti (1995)

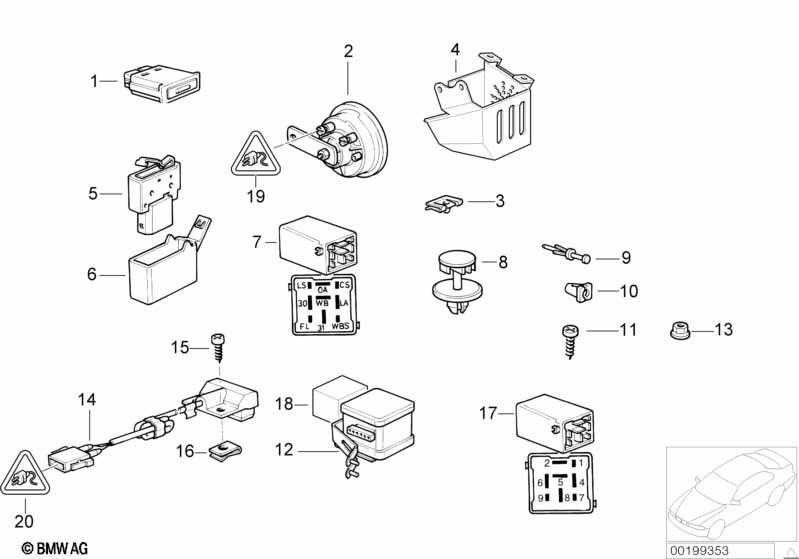

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tell-tale | 1 | 65758357417 | $25.48 | Shop at ECS Tuning | |||||
| 02 | Alternative power siren | 1 | 09/1995 | 65758383152 | $141.92 | Shop at ECS Tuning | ||||
| 03 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Covering horn | 1 | 65758367700 | $11.83 | Shop at ECS Tuning | |||||
| 05 | Microswitch | 1 | 65758350549 | $30.38 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket micro switch | 1 | 65758360046 | $1.11 | Shop at ECS Tuning | |||||
| 07 | Crash alarm relay | 1 | 61358364692 | $62.85 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 1 | 65758357500 | $0.92 | Shop at ECS Tuning | |||||
| 09 | Rivet | 1 | 51711936929 | $0.37 | Shop at ECS Tuning | |||||
| 10 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 11 | Set fillister head self-tapping screw 20 | ST4,8X16-Z1 | X | 07509064397 | ENDED | Shop at ECS Tuning | ||||
| 12 | Inclination indicator | 1 | 09/1998 | 65756923212 | $112.72 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adapter wire f inclination indicator | 1 | 09/1998 | 65758380747 | $12.67 | Shop at ECS Tuning | ||||
| 13 | Hex nut | AM5-8-ZNNIV SI | 2 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Contact door window | 2 | 65758366218 | $43.93 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST4,2X9,5-Z1 | 4 | 07119907812 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST4,2-2 | 4 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Starter interlock relay | 1 | 61358364174 | $62.85 | Shop at ECS Tuning | |||||
| 18 | Sound absorber | 1 | 65758385738 | $11.83 | Shop at ECS Tuning | |||||
| 19 | Universal socket housing uncoded | 4 POL. | 1 | 09/1995 | 61138365356 | $3.10 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 4 | 09/1995 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 4 | 09/1995 | 61130056961 | Shop at ECS Tuning | ||||
| 20 | Universal socket housing uncoded | 2 POL. | 2 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
