Alarm systems for BMW 6 Series E24 628CSi (1987)

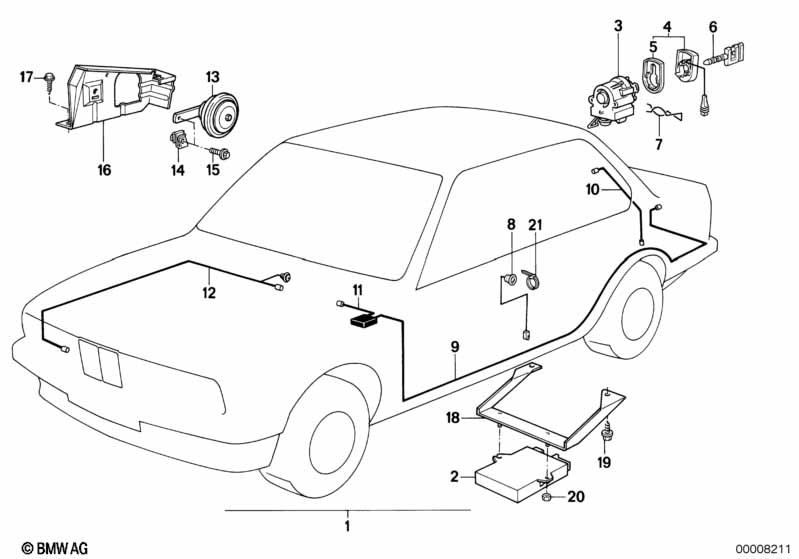

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, theft alarm | 1 | 09/1984 | 65751375597 | ENDED | Shop at ECS Tuning | ||||
| 02 | Control unit theft alarm | 1 | 09/1984 | 65751386605 | $562.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 02 | Control unit theft alarm | 1 | 09/1984 | 65751386606 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 02 | Control unit theft alarm | 1 | 09/1984 | 65751386607 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock | 1 | 05/1982 | 65751368904 | $451.53 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 05/1982 | 65751368903 | $82.21 | Shop at ECS Tuning | ||||
| 05 | Base | 1 | 05/1982 | 65751368912 | $8.80 | Shop at ECS Tuning | ||||
| 06 | Key theft alarm | 1 | 05/1982 | 65751380684 | $83.09 | Shop at ECS Tuning | ||||
| 07 | Lock Ring | 1 | 05/1982 | 65751368913 | $4.65 | Shop at ECS Tuning | ||||
| 08 | Tell-tale | 1 | 09/1983 | 65751375122 | $41.36 | ENDED | Shop at ECS Tuning | |||
| 09 | Wiring theft alarm | 1 | 05/1982 | 61121368906 | $88.16 | ENDED | Shop at ECS Tuning | |||
| 10 | Cable trunk light | 1 | 05/1982 | 65751371736 | ENDED | Shop at ECS Tuning | ||||
| 11 | Current supply wiring set | 1 | 09/1984 | 61121375470 | $41.29 | ENDED | Shop at ECS Tuning | |||
| 12 | Wiring switch engine hood | 1 | 09/1983 | 61121375267 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 13 | Horn | KLAXON 335HZ | 1 | 05/1982 | 61331367358 | $42.14 | ENDED | Shop at ECS Tuning | ||
| 16 | Water deflector | 1 | 09/1983 | 64111917397 | $32.09 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex bolt with washer | M8X16-Z3-2 | 1 | 09/1983 | 07119915071 | $0.47 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission Eh |
=Yes |
|||||||||
| 18 | Holder | 1 | 09/1984 | 65711377255 | $53.85 | Shop at ECS Tuning | ||||
| 19 | Hex head screw | ST4,8X16-C-Z1 | 3 | 09/1984 | 07119916945 | $0.18 | Shop at ECS Tuning | |||
| 19 | Hex head screw | ST4,8X16-C-Z1 | 3 | 09/1984 | 07119906265 | ENDED | Shop at ECS Tuning | |||
| 21 | Cable tie | L=292MM/B=4,8MM | 5 | 05/1982 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
