Ultrasonic theft alarm for BMW 7 Series E32 730iL (1993)

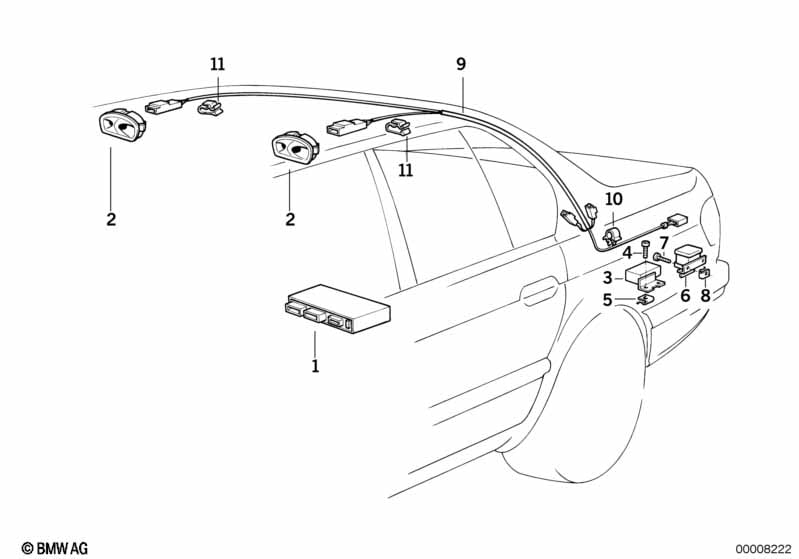

This Ultrasonic theft alarm technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ultrason.control unit DWA without code | DWA 4 | 1 | 03/1993 | 65758366229 | $312.24 | Shop at ECS Tuning | |||
| 02 | Ultra sonicsensor-DWA | GRAU | 2 | 03/1993 | 65758360119 | $135.04 | ENDED | Shop at ECS Tuning | ||
| without tilt sunroof, no black sensor | ||||||||||
| 02 | Ultra sonicsensor-DWA | BEIGE | 2 | 03/1993 | 65758360173 | $135.04 | ENDED | Shop at ECS Tuning | ||
| without tilt sunroof, no black sensor | ||||||||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 02 | Ultra sonicsensor-DWA | SCHWARZ | 2 | 03/1993 | 65752262982 | $135.04 | ENDED | Shop at ECS Tuning | ||
| 02 | Ultra sonicsensor-DWA | GRAU | 2 | 03/1993 | 65758360120 | $135.04 | ENDED | Shop at ECS Tuning | ||
| 02 | Ultra sonicsensor-DWA | BEIGE | 2 | 03/1993 | 65758360174 | $135.04 | ENDED | Shop at ECS Tuning | ||
| 03 | Ultrasonic module DWA | 1 | 03/1993 | 65758360114 | $360.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST4,2X13-Z1 | 3 | 03/1993 | 07119907943 | $0.14 | ENDED | Shop at ECS Tuning | ||
| 04 | Sheet metal screw | 4,2X13 | 3 | 03/1993 | 07119904310 | $0.38 | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,2-2 | 2 | 03/1993 | 07129904245 | $0.25 | Shop at ECS Tuning | |||
| 06 | Inclination indicator | 1 | 03/1993 | 65756923208 | $156.60 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter wire f inclination indicator | 1 | 03/1993 | 65758380747 | $12.67 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X13-C-U1-Z | 2 | 03/1993 | 07119906128 | $0.18 | Shop at ECS Tuning | |||
| 08 | Plug-in nut | M5 | 2 | 03/1993 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
| 09 | Wiring set ultra sonicsensor DWA | 1 | 03/1993 | 61128360117 | $77.18 | ENDED | Shop at ECS Tuning | |||
| 10 | Tubing support | D=10,8MM | 1 | 03/1993 | 64111364073 | $0.57 | Shop at ECS Tuning | |||
| 11 | Cable holder | D=5MM | 2 | 03/1993 | 61131379079 | $0.48 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
