Theft alarm/infrared control for BMW 8 Series E31 840i (1996)

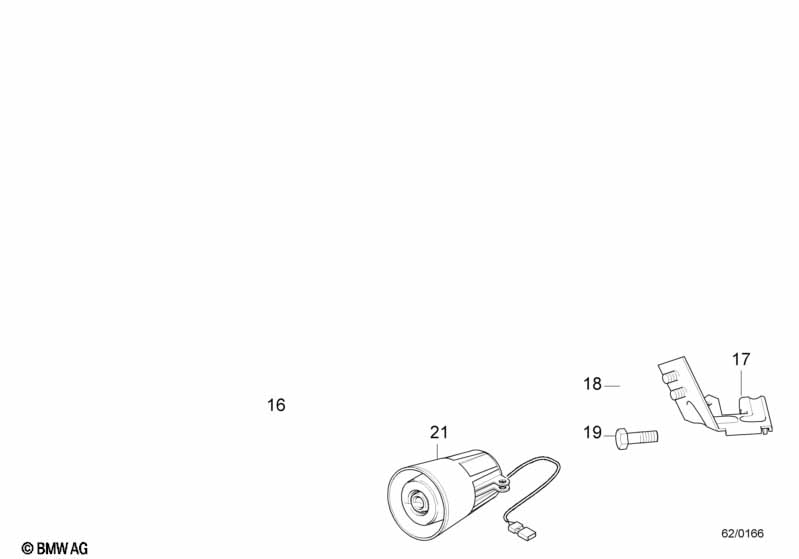

This Theft alarm/infrared control technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Control unit DWA without code | DWA IV | 1 | 65758368680 | $289.52 | Shop at ECS Tuning | ||||
| For vehicles with DWA-Alarm System |
=Yes |
|||||||||
| 02 | Control unit DWA without code | DWA IV | 1 | 65758368680 | $289.52 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO INFRARED-TRANSMITTER | ||||||||||
| 03 | Tell-tale | 1 | 09/1992 | 65758357417 | $25.48 | Shop at ECS Tuning | ||||
| 04 | Inclination indicator | 1 | 65756923208 | $156.60 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter wire f inclination indicator | 1 | 65758380747 | $12.67 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 06 | Additional module | 1 | 65751383460 | $74.76 | ENDED | Shop at ECS Tuning | ||||
| 07 | Radiocontact | 2 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 07 | Contact door window rear | 2 | 09/1993 | 65758366216 | $43.93 | ENDED | Shop at ECS Tuning | |||
| 07 | Contact door window | 2 | 09/1993 | 65758366217 | $42.97 | ENDED | Shop at ECS Tuning | |||
| 08 | Front side window magnet | 2 | 65751383705 | Shop at ECS Tuning | ||||||
| 09 | Magnet | 1 | 65751383706 | Shop at ECS Tuning | ||||||
| 17 | Bracket alternative power siren | 1 | 09/1995 | 65758368271 | $5.69 | ENDED | Shop at ECS Tuning | |||
| 18 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Alternative power siren | 1 | 09/1995 | 65758383152 | $141.92 | Shop at ECS Tuning | ||||
| 21 | Alternative power siren | 1 | 09/1995 | 65758383153 | $141.92 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
