Theft alarm/infrared control for BMW 5 Series E34 520i (1993)

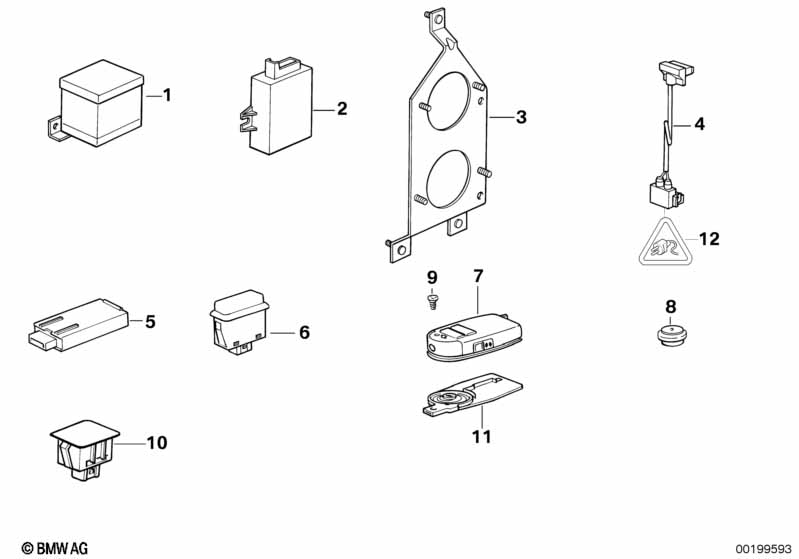

This Theft alarm/infrared control technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inclination indicator | 1 | 65756923208 | $156.60 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter wire f inclination indicator | 1 | 65758380747 | $12.67 | Shop at ECS Tuning | |||||
| 04 | Contact door window | 4 | 09/1993 | 65758366218 | $43.93 | Shop at ECS Tuning | ||||
| 09 | Countersunk head screw | M 2,5X3,9 | 2 | 51211388909 | $0.33 | Shop at ECS Tuning | ||||
| 10 | Housing | 1 | 66108354091 | $3.92 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Infrared receiver | 1 | 66108354090 | $323.29 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 66101390655 | $50.92 | Shop at ECS Tuning | |||||
| 12 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
