Components, HiFi system, rear for BMW 3 Series E46 316ti (2004)

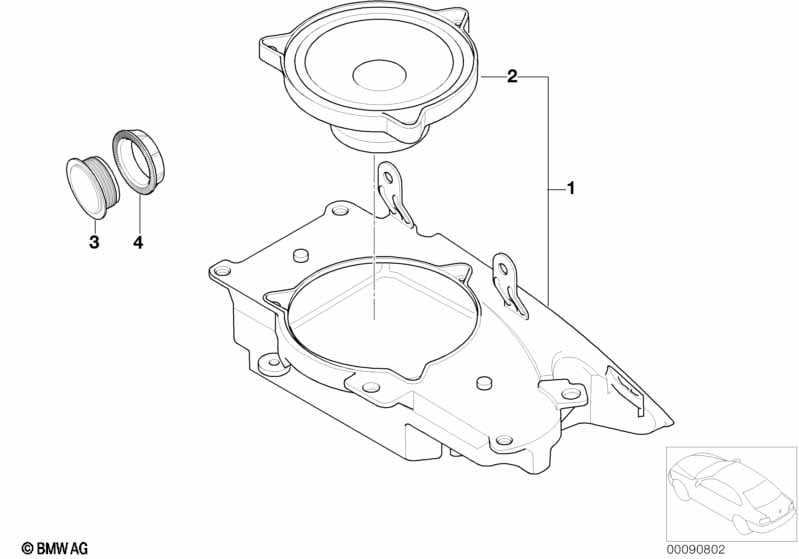

This Components, HiFi system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loudspeaker box, left | HIFI | 1 | 65136908385 | ENDED | Shop at ECS Tuning | ||||
| 01 | Loudspeaker box, right | HIFI | 1 | 65136908386 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker hifi | 70-10.000HZ | 2 | 65138378556 | $45.28 | Shop at ECS Tuning | ||||
| 03 | Hifi Tweeter | HELLBEIGE | 2 | 65136906972 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hifi Tweeter | SCHWARZ | 2 | 65136906973 | Shop at ECS Tuning | |||||
| 03 | Hifi Tweeter | TITANGRAU | 2 | 65136906974 | ENDED | Shop at ECS Tuning | ||||
| 04 | Tweeter threaded ring | 2 | 65138360689 | $6.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
