Components M-sound system rear shelf for BMW 5 Series E39 528i (1998)

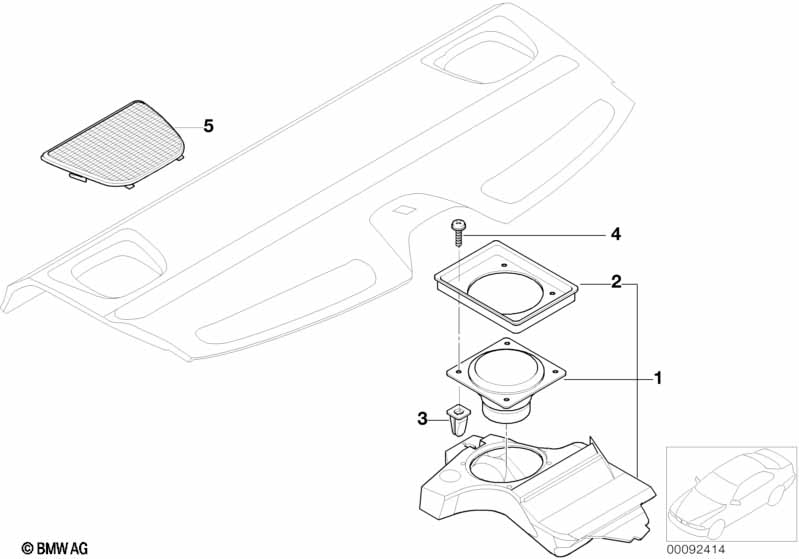

This Components M-sound system rear shelf technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 01 | Rear left loudspeaker | M-SOUNDSYSTEM | 1 | 65137894043 | $208.87 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Rear right loudspeaker | M-SOUNDSYSTEM | 1 | 65137894044 | $208.87 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Sound insulation ring for loudspeaker | 2 | 65138369579 | $9.57 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,8X16 | 1 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | DUNKELGRUEN | 1 | 51468230772 | $16.74 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover Loudspeaker | SCHWARZ | 1 | 51468230768 | $17.00 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | GRAU | 1 | 51468230769 | $17.00 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | MARINEBLAU | 1 | 51468230771 | $17.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover Loudspeaker | SANDBEIGE | 1 | 51468230770 | $17.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
