Components M-sound system, front door for BMW 5 Series E39 525i (2003)

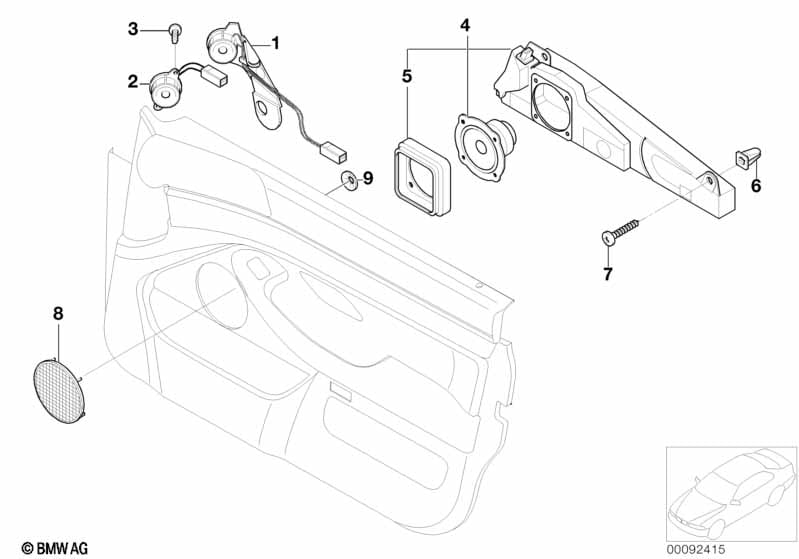

This Components M-sound system, front door technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left hifi loudspeaker tweeter | 1 | 65138362529 | $50.73 | Shop at ECS Tuning | |||||
| 01 | Right hifi loudspeaker tweeter | 1 | 65138362530 | $50.73 | Shop at ECS Tuning | |||||
| 02 | MID-range loudspeaker | 1 | 65138374982 | $48.28 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | 2 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 04 | Left front door loudspeaker box | M-SOUNDSYSTEM | 1 | 09/2001 | 65137894041 | $208.87 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Right front door loudspeaker box | M-SOUNDSYSTEM | 1 | 09/2001 | 65137894042 | $208.87 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Sound insulation ring for loudspeaker | 2 | 65138369578 | $9.57 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | ST 4.8 WEISS | 6 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X16 | 6 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Cover Loudspeaker | SCHWARZ | 2 | 51418178241 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover Loudspeaker | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 08 | Cover Loudspeaker | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 08 | Cover Loudspeaker | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Spring nut | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Components M-sound system, front door?
- This technical diagram illustrates the Components M-sound system, front door within the Audio, Navigation, Electronic Systems group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Left hifi loudspeaker tweeter (Part #65138362529).
- Which models use the hardware listed in this Components M-sound system, front door?
- The hardware and components featured in the Components M-sound system, front door are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Left hifi loudspeaker tweeter (65138362529) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Components M-sound system, front door assembly?
- Each item in the Components M-sound system, front door corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Left hifi loudspeaker tweeter by locating its position on the schematic, which then links to the official BMW part number 65138362529 for the Audio, Navigation, Electronic Systems section.
