Connection cable CD-changer for BMW 5 Series E39 528i (2000)

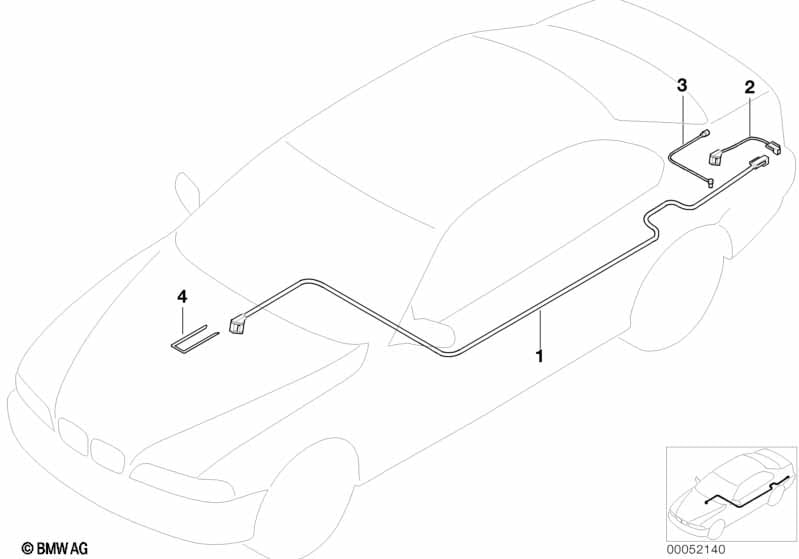

This Connection cable CD-changer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection cable CD-changer | 4210MM | 1 | 09/2000 | 65128360754 | $43.63 | Shop at ECS Tuning | |||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 02 | Connection cable CD-changer | 550MM | 1 | 09/2001 | 65128364756 | $38.33 | Shop at ECS Tuning | |||
| For vehicles with National version japan and On-board monitor with TV and Navigation system Professional |
L807A=Yes S602A=Yes S609A=Yes |
|||||||||
| 02 | Connection cable CD-changer | 1570MM | 1 | 65128372863 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 03 | Connection cable CD-changer | 1 | 09/2001 | 65128360756 | $28.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Clip f plug terminal | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
