CD changer mounting parts for BMW 5 Series E39 530i (2003)

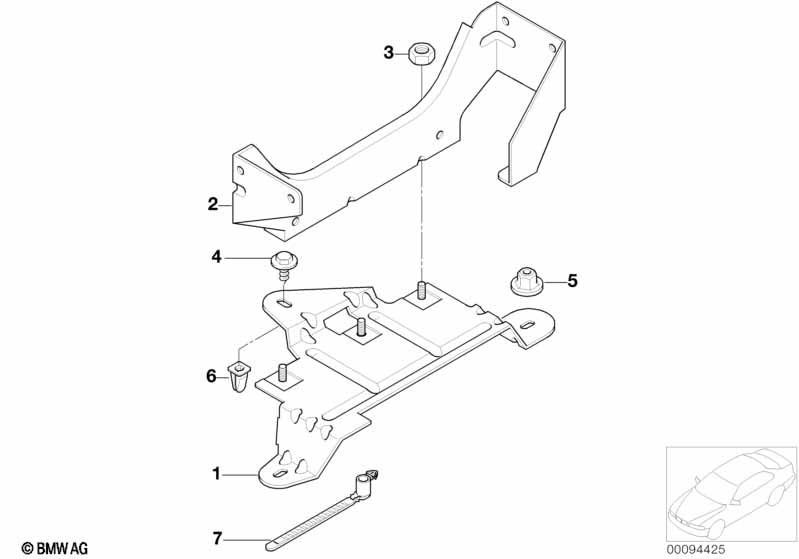

This CD changer mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base support system | 1 | 65128368229 | $12.88 | Shop at ECS Tuning | |||||
| 02 | Bracket CD-changer | 1 | 65128361453 | $9.11 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Cable tie | L=119MM | 1 | 61138357028 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530i CD changer mounting parts?
- This technical diagram illustrates the CD changer mounting parts within the Audio, Navigation, Electronic Systems group for the 5 Series E39 530i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Base support system (Part #65128368229).
- Which models use the hardware listed in this CD changer mounting parts?
- The hardware and components featured in the CD changer mounting parts are specific to the 5 Series E39 530i produced during 2003. These technical specifications ensure that parts like the Base support system (65128368229) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the CD changer mounting parts assembly?
- Each item in the CD changer mounting parts corresponds to the numbered list below the illustration. For the 5 Series E39 530i, you can identify the Base support system by locating its position on the schematic, which then links to the official BMW part number 65128368229 for the Audio, Navigation, Electronic Systems section.
