Antenna cable, Audio/Video for BMW 7 Series E66 740Li (2008)

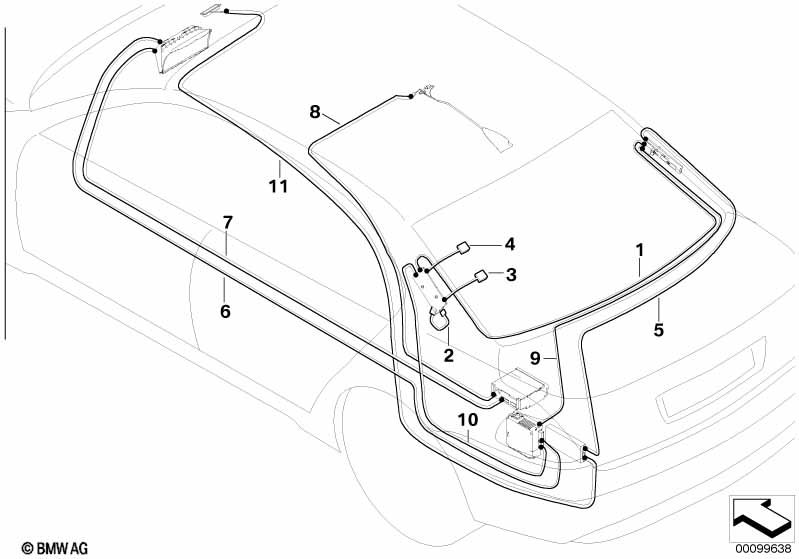

This Antenna cable, Audio/Video technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Strip trans line Diversity antenna tuner | 1 | 61126904620 | $8.18 | Shop at ECS Tuning | |||||
| 03 | Adapter cable Diversity | FM 2 | 1 | 61126912158 | $4.88 | Shop at ECS Tuning | ||||
| 04 | Adapter cable Diversity | AM/ FM | 1 | 61126912157 | $9.10 | Shop at ECS Tuning | ||||
| 05 | Antenna lead, trap circuit/video module | L= 3750MM | 1 | 61116923117 | Shop at ECS Tuning | |||||
| 06 | Lead (red-gr-bl), video module, MMI | 1 | 61116923114 | ENDED | Shop at ECS Tuning | |||||
| 07 | Lead (red-gr-bl),navigation computer/MMI | 1 | 61126923033 | $31.08 | Shop at ECS Tuning | |||||
| 08 | Antenna cable GPS | L= 3100MM | 1 | 61126923031 | $44.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 08 | Antenna lead,GPS receiver/GPS antenna | L= 3430MM | 1 | 61126923032 | ENDED | Shop at ECS Tuning | ||||
| 09 | Antenna line VICS receiver/trap circuit | L= 3640MM | 1 | 61126923035 | ENDED | Shop at ECS Tuning | ||||
| 10 | Antenna lead, tuner/video module | 1 | 61116923116 | $35.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Antenna line VICS receiver/VICS sensor | L= 6740MM | 1 | 61126923036 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
