Control display for Asia for BMW 7 Series E65 750i (2008)

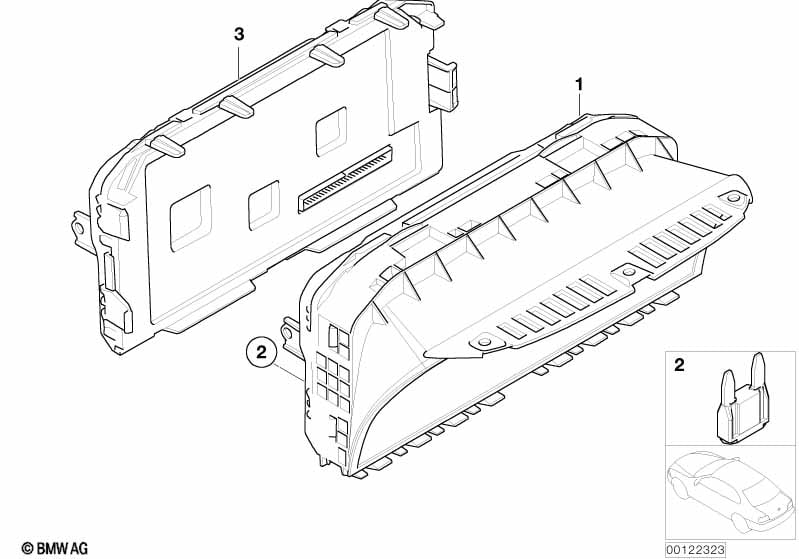

This Control display for Asia technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Language version, Chinese simpl. or Language version Korean |
S866A=Yes S867A=Yes |
|||||||||
| 01 | RP control display | 6,5" | 1 | 03/2005 | 65829165214 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN control display | 6,5" | 1 | 03/2005 | 65826960099 | $2438.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=Yes S867A=No S609A=Yes S601A=Yes |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=Yes S867A=No S609A=Yes S601A=No |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=Yes S867A=No S609A=No S601A=Yes |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=No S867A=Yes S609A=Yes S601A=Yes |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=No S867A=Yes S609A=Yes S601A=No |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Language version, Chinese simpl. and Language version Korean and Navigation system Professional and TV function |
S866A=No S867A=Yes S609A=No S601A=Yes |
|||||||||
| 01 | Control display | 8,8" | 1 | 03/2005 | 65509172146 | ENDED | Shop at ECS Tuning | |||
| 01 | REMAN control display | 8,8" | 1 | 03/2005 | 65826960097 | $2538.90 | ENDED | Shop at ECS Tuning | ||
| 02 | Fuse Mini, yellow-brown | 5A | 1 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| For vehicles with Rear display screen and Language version, Chinese simpl. and Language version Korean |
S603A=Yes S866A=Yes S867A=No |
|||||||||
| 03 | Control unit, rear compartment monitor | 1 | 03/2005 | 65506960721 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Rear display screen and Language version, Chinese simpl. and Language version Korean |
S603A=Yes S866A=No S867A=Yes |
|||||||||
| 03 | Control unit, rear compartment monitor | 1 | 03/2005 | 65506960721 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
