Components central bass for BMW 5 Series E60 LCI 525i (2009)

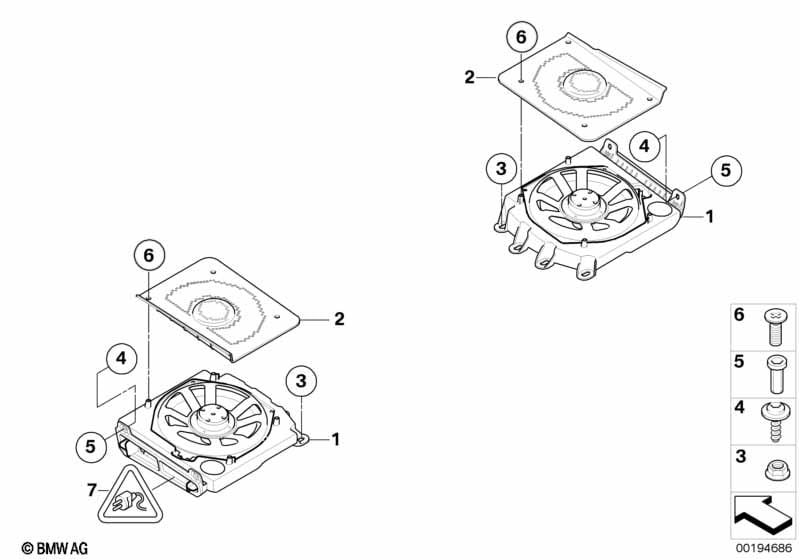

This Components central bass technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Central bass, left | STEREO-SYSTEM | 1 | 65136919353 | $171.83 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | STEREO-SYSTEM | 1 | 65136919354 | $171.83 | Shop at ECS Tuning | ||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 01 | Central bass, left / Indi. Audio System | 1 | 03/2007 | 65137838909 | $372.10 | ENDED | Shop at ECS Tuning | |||
| 01 | Central bass, right / Indi. Audio System | 1 | 03/2007 | 65137838910 | $372.10 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Central bass, left | TOP-HIFI-SYSTEM | 1 | 65139143133 | $537.08 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | TOP-HIFI-SYSTEM | 1 | 65139143134 | $537.08 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | Central bass, left | HIFI-SYSTEM | 1 | 65139143141 | $273.82 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | HIFI-SYSTEM | 1 | 65139143142 | $273.82 | Shop at ECS Tuning | ||||
| 02 | Central woofer trim | 1 | 10/2005 | 65136976960 | $17.85 | Shop at ECS Tuning | ||||
| 03 | Hex nut | 4 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M6X16 | 4 | 07149113787 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Blind rivet nut, flat headed | M6 | 4 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | 8 | 07149156622 | $0.10 | Shop at ECS Tuning | |||||
| 07 | Universal socket housing uncoded | 4 POL. | 1 | 09/2010 | 61136984750 | $5.03 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 09/2010 | 61130056965 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 4 | 09/2010 | 61138369634 | $0.55 | Shop at ECS Tuning | |||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359996 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 61130056965 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 4 | 61138369634 | $0.55 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
