Single parts f antenna-diversity for BMW 5 Series E60 525d (2007)

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.

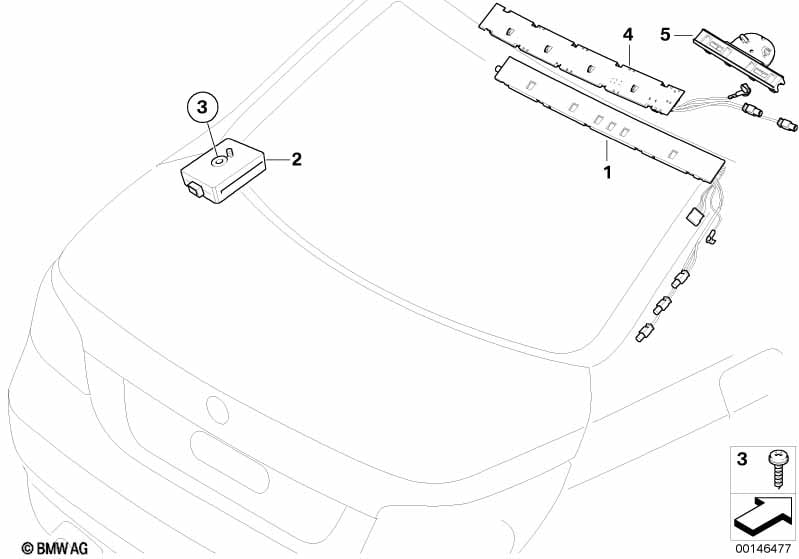

Single parts f antenna-diversity
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Information on remote control:
Basis = radio remote control 868 MHZ
Japan/Korea = radio remote control 315
MHZ
Low-power
SA 876 = radio remote control 315 MHZ
SA 874 = radio remote control 434 MHZ
For vehicles with
TV function
S601A=Yes
01 Antenna amplifier Diversity 868MHZ 1 65209193833 $342.73 ENDED Shop at ECS Tuning
01 Antenna amplifier Diversity 434MHZ 1 65209193835 ENDED, +core Shop at ECS Tuning
For vehicles with
National version japan
and
TV function
L807A=Yes

S601A=Yes
01 Antenna amplifier Diversity 315MHZ 1 09/2008 65209193839 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=Yes

S6UAA=Yes

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=Yes

S6UAA=Yes

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=Yes

S6UAA=No

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=Yes

S6UAA=No

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=No

S6UAA=Yes

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=No

S6UAA=Yes

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=No

S6UAA=No

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=Yes

S603A=No

S6UAA=No

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=Yes

S6UAA=Yes

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=Yes

S6UAA=Yes

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=Yes

S6UAA=No

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=Yes

S6UAA=No

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=No

S6UAA=Yes

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=No

S6UAA=Yes

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Radio frequency 315 MHz
and
Vehicle without TV function
S601A=No

S603A=No

S6UAA=No

S876A=Yes

S8S7A=Yes
01 Antenna amplifier Diversity 315MHZ 1 65209193837 $342.73 ENDED Shop at ECS Tuning
For vehicles with
National version japan
and
Rear display screen
and
Head-up display
and
Factory preparations, navigation system
and
Preparation for TV function
and
Radio frequency 434 MHz
L807A=No

S603A=No

S610A=No

S6UAA=No

S6UCA=No

S874A=Yes
01 Antenna amplifier Diversity 434MHZ 1 65209193834 ENDED Shop at ECS Tuning
For vehicles with
National version japan
and
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Preparation for TV function
and
Radio frequency 315 MHz
and
Vehicle without TV function
L807A=No

S601A=No

S603A=No

S6UAA=No

S6UCA=No

S876A=Yes

S8S7A=No
01 Antenna amplifier Diversity 315MHZ 1 65209193836 $197.28 ENDED Shop at ECS Tuning
For vehicles with
National version japan
and
TV function
and
Rear display screen
and
Factory preparations, navigation system
and
Preparation for TV function
and
Radio frequency 434 MHz
and
Radio frequency 315 MHz
L807A=No

S601A=No

S603A=No

S6UAA=No

S6UCA=No

S874A=No

S876A=No
01 Antenna amplifier Diversity 868MHZ 1 65209193832 $197.28 ENDED Shop at ECS Tuning
02 Suppression filter 1 65206938966 $23.60 Shop at ECS Tuning
03 Sheet metal screw ISA M5X12 1 07149158177 $0.25 Shop at ECS Tuning
For vehicles with
DAB tuner
S654A=Yes
04 Antenna amplifier DAB 1 09/2005 65206946409 ENDED Shop at ECS Tuning
05 Bracket plug terminal 1 09/2005 65206958048 $1.21 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
