Alarm systems for BMW 5 Series E60 LCI 523Li (2009)

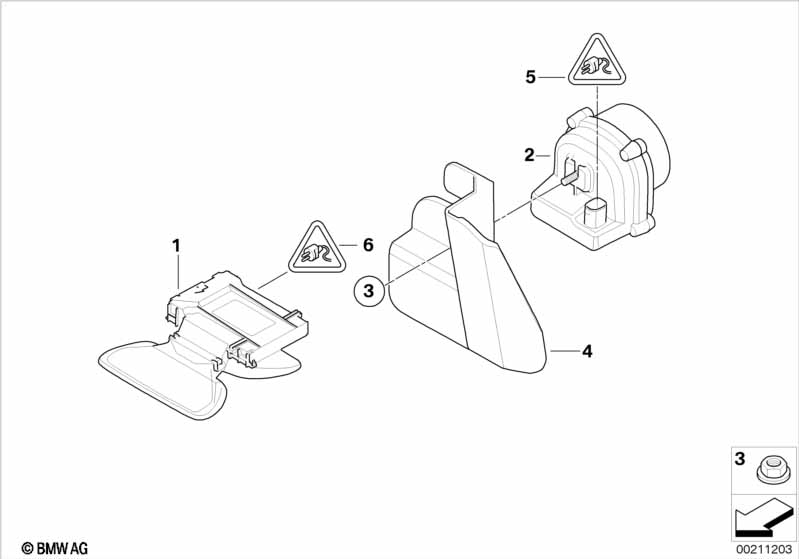

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! There is use for the ultrasonic module of the E61 with panorama roof in E60s and E61s without panorama roof, but which have been retrofitted with the BMW DVD System. |
|||||||||
| 01 | Ultra sonic-module | 1 | 65759149673 | $193.97 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 01 | Ultra sonic-module | 1 | 65759149673 | $193.97 | Shop at ECS Tuning | |||||
| 02 | Altern.power siren w inclination indicat | 1 | 65759243750 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Universal socket housing uncoded | 3 POL. | 1 | 09/2010 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/2010 | 61130056961 | Shop at ECS Tuning | ||||
| 05 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 06 | Universal pin terminal uncoded | 10 POL. | 1 | 61138364675 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact pin MQS | 0,2-0,35MM²/SN | X | 61131383672 | $0.42 | Shop at ECS Tuning | ||||
