Electr. compon. seat occupancy detection for BMW 5 Series E60 523i (2006)

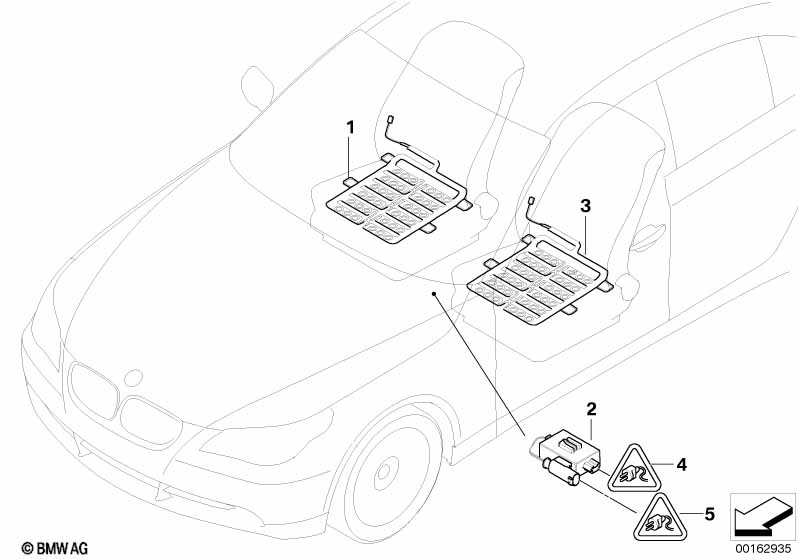

This Electr. compon. seat occupancy detection technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sensor mats for USA are included in seat covers of main group 52. |
|||||||||
| For vehicles with Climate-controlled seats, front |
S453A=Yes |
|||||||||
| 01 | Sensor mat, front seat | 1 | 09/2005 | 65776982975 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Sports seat |
S453A=No S456A=No S481A=No |
|||||||||
| 01 | Sensor mat, front seat | 1 | 09/2005 | 65779154960 | $129.05 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Sports seat and Climate-controlled seats, front and M multifunction seat |
S456A=Yes S481A=No S453A=No S4MAA=No |
|||||||||
| 01 | Sensor mat, front seat | 1 | 09/2005 | 65779154961 | $129.05 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Sports seat and Climate-controlled seats, front and M multifunction seat |
S456A=No S481A=Yes S453A=No S4MAA=No |
|||||||||
| 01 | Sensor mat, front seat | 1 | 09/2005 | 65779154961 | $129.05 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Sports seat and Climate-controlled seats, front and M multifunction seat |
S456A=No S481A=No S453A=No S4MAA=Yes |
|||||||||
| 01 | Sensor mat, front seat | 1 | 09/2005 | 65779154961 | $129.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
