CCC CD for BMW 5 Series E61 520d (2007)

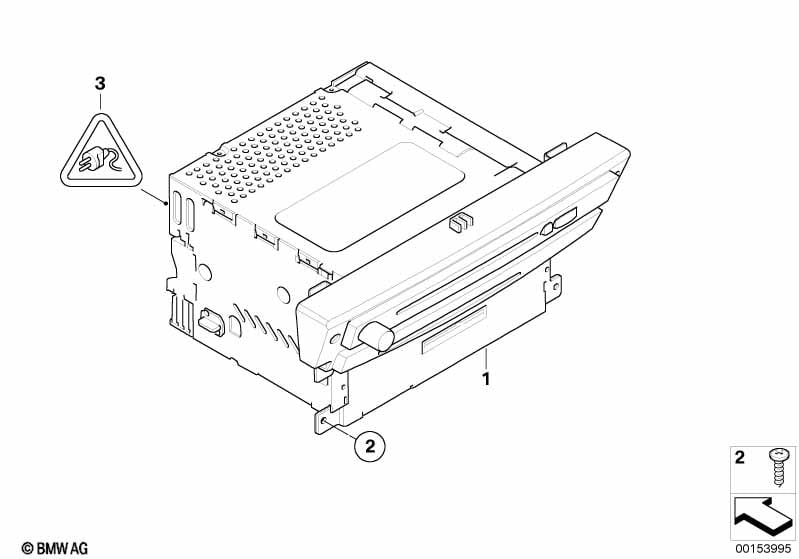

This CCC CD technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Please respond to 'CCC Navigation DVD not recognized' by consulting the following PUMA measure: 26930834 A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . |
|||||||||
| 01 | CCC CD | 1 | 09/2006 | 03/2007 | 65835A505D9 | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,2X19-U1-C-H | 4 | 07119904175 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Plug housing | 16 POL. | 1 | 61138384580 | $3.78 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Envelope f optical waveguide | 2POL./GRAU | 1 | 61138387216 | $1.83 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 03 | Socket housing | 12 POL. | 1 | 61138384550 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 8 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 8 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| -- | Socket housing | 8 POL. | 2 | 61136905788 | $1.52 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Fuse | 1 | 61138384567 | $0.92 | Shop at ECS Tuning | |||||
| -- | Covering cap | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
