Amplifier / bracket for BMW 6 Series E64 645Ci (2005)

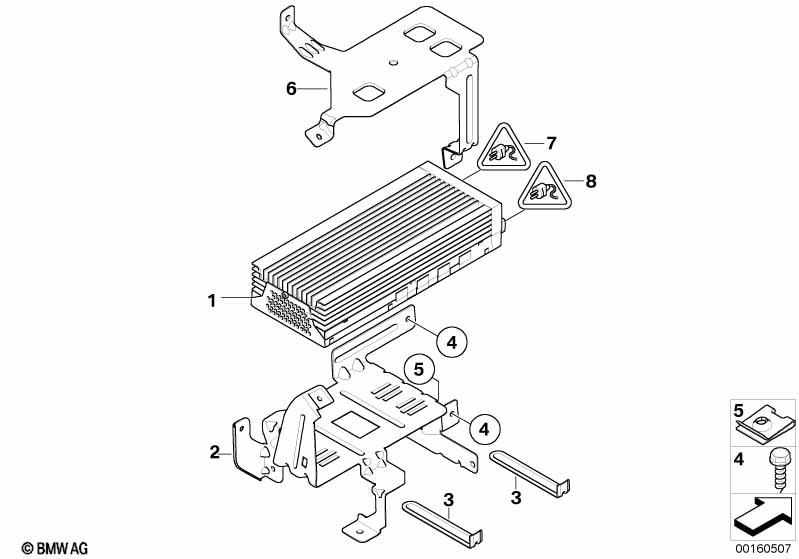

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier, stereo/HiFi | 1 | 09/2008 | 65126920461 | $238.32 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Top-hifi system amplifier | 1 | 65129181743 | $1232.18 | Shop at ECS Tuning | |||||
| 02 | Holder amplifier/video module | 1 | 65156927000 | $12.88 | Shop at ECS Tuning | |||||
| 03 | Locking bracket | 1 | 65126908277 | $1.92 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M5X14 | 6 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Trim panel bracket | 1 | 65106929183 | $6.56 | +core | Shop at ECS Tuning | ||||
| 07 | Socket housing | 20 POLIG | 1 | 61131383502 | $7.28 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 4 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | Terminal socket 2.5 | 0.5-1.0 MM² | 4 | 61131392302 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Socket housing | 1 | 61136901844 | $3.42 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 4 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 61136905200 | $3.68 | Shop at ECS Tuning | |||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
