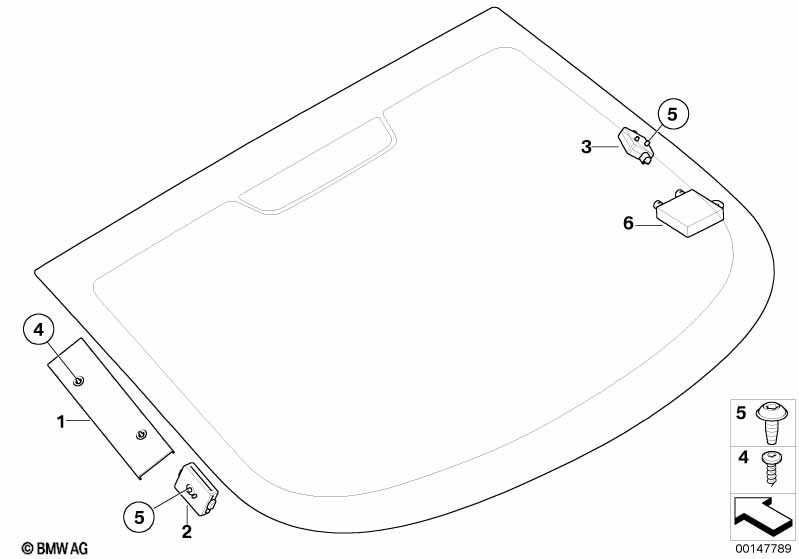

Components, antenna amplifier, diversity for BMW 6 Series E63 630i (2007)
This Components, antenna amplifier, diversity technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Information on remote control: Basis = radio remote control 868 MHZ Japan/Korea = radio remote control 315 MHZ Low-power SA 876 = radio remote control 315 MHZ SA 874 = radio remote control 434 MHZ |
|||||||||
| 01 | Antenna amplifier Diversity | 868 MHZ | 1 | 65209187682 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 315 MHZ | 1 | 09/2008 | 65209167108 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 315 MHZ | 1 | 65209187680 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 434 MHZ | 1 | 65209187681 | ENDED | Shop at ECS Tuning | ||||
| 02 | Suppression filter | 1 | 65316990089 | $34.55 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trap circuit | 1 | 65246990090 | $17.86 | Shop at ECS Tuning | |||||
| 04 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw with collar | M5X16MM | 2 | 07149158182 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 06 | TV amplifier | 1 | 65209166896 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
