Alarm systems for BMW 6 Series E64 630i (2007)

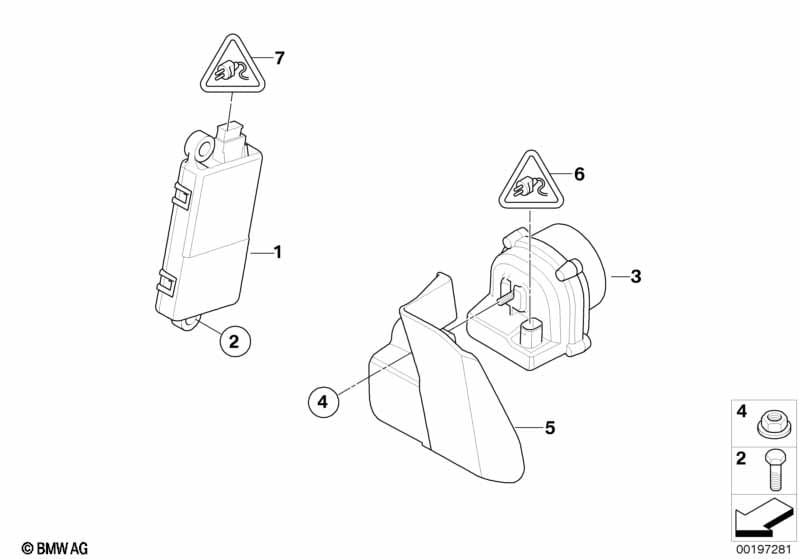

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | DWA-Alarm System | 4 | 09/2005 | 65756950525 | $99.75 | Shop at ECS Tuning | ||||
| Rear | ||||||||||
| 02 | Fillister-head screw | M4X10 | 4 | 07146977086 | $0.48 | Shop at ECS Tuning | ||||
| Front | ||||||||||
| 02 | Phillips screw f plastic material | TS5X12 | 4 | 07129904424 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Altern.power siren w inclination indicat | 1 | 09/2007 | 65759147997 | $183.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||

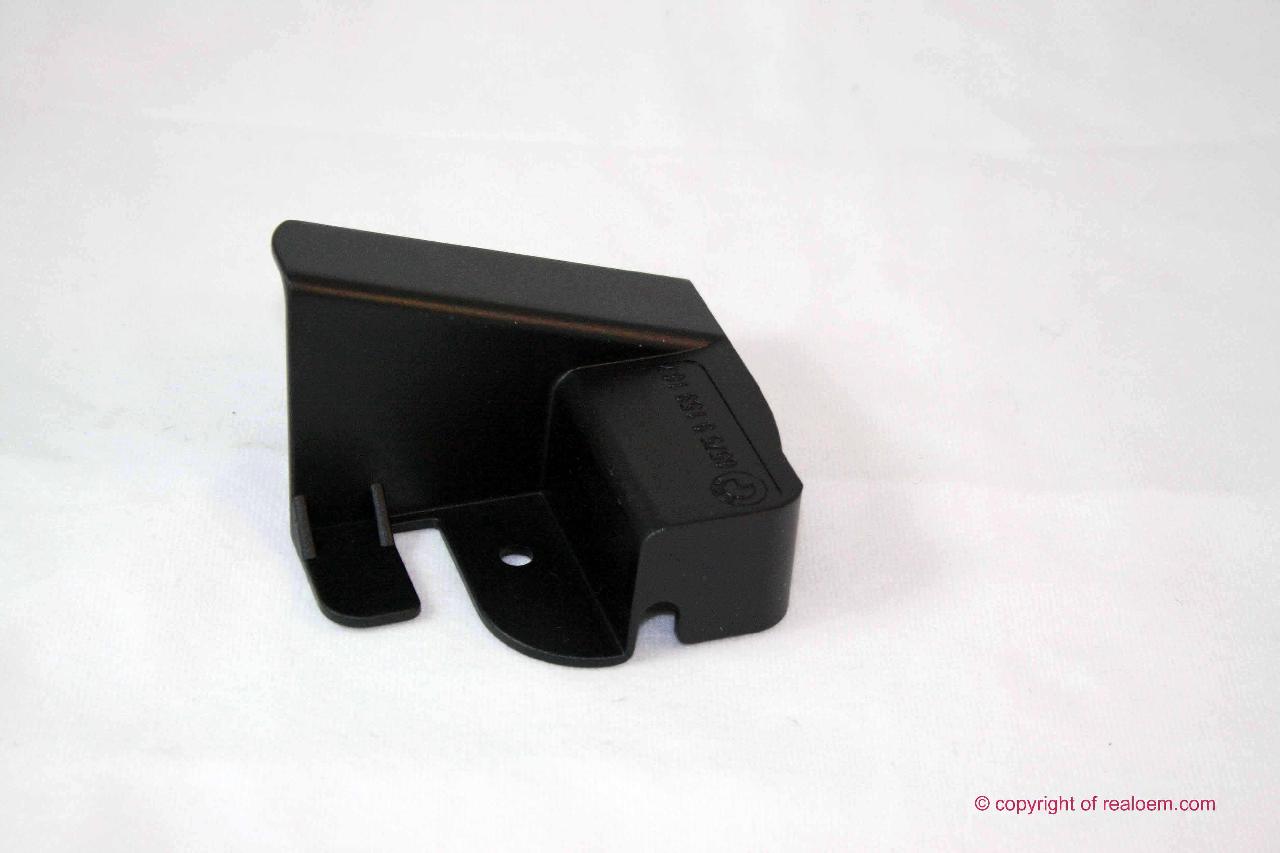

| -- | Cover, emergency-current siren | 1 | 09/2007 | 65759159167 | $4.91 | Shop at ECS Tuning | ||||
| Observe repair instructions 6575557 | ||||||||||
| 04 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Cover, emergency-current siren | 1 | 09/2007 | 65756937761 | $4.92 | Shop at ECS Tuning | ||||
| 06 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Universal socket housing uncoded | 4 POL. | 1 | 07/2010 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 4 | 07/2010 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 07/2010 | 61130056960 | Shop at ECS Tuning | ||||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 4 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 61130056960 | Shop at ECS Tuning | |||||
