Antenna cable Radio/TV for BMW 5 Series E60 525i (2007)

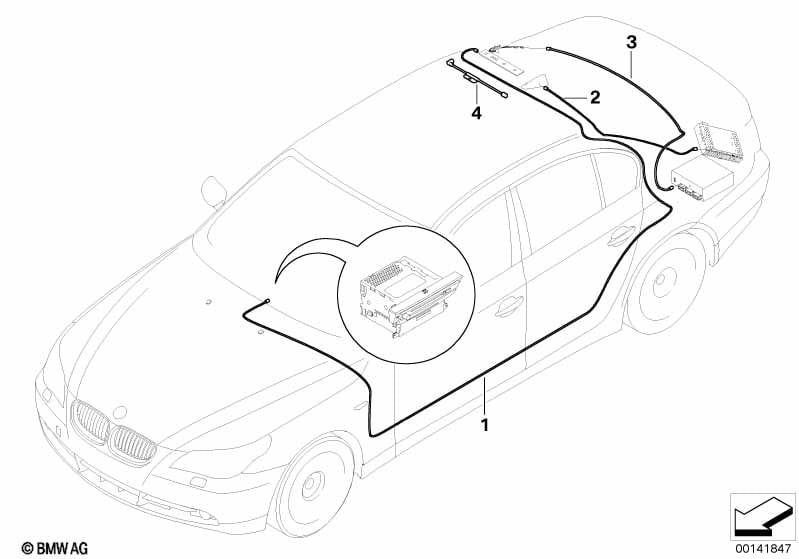

This Antenna cable Radio/TV technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fabricate deleted antenna cable using coaxial cable repair part assortment (see notices in Text Image Unit) |
|||||||||
| 01 | Antenna cable MASK or CCC/Antenna FM | L= 6400MM | 1 | 61126941310 | $42.65 | ENDED | Shop at ECS Tuning | |||
| 03 | Antenna cable TV 2 / video module TV 2 | L=3560MM | 1 | 61126941314 | ENDED | Shop at ECS Tuning | ||||
| 03 | Antenna cable TV 1 / video module TV 1 | L=3560MM | 1 | 61126941315 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trap circuit | 1 | 65206958359 | $32.39 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
