Electr. compon. seat occupancy detection for BMW 6 Series E64 645Ci (2005)

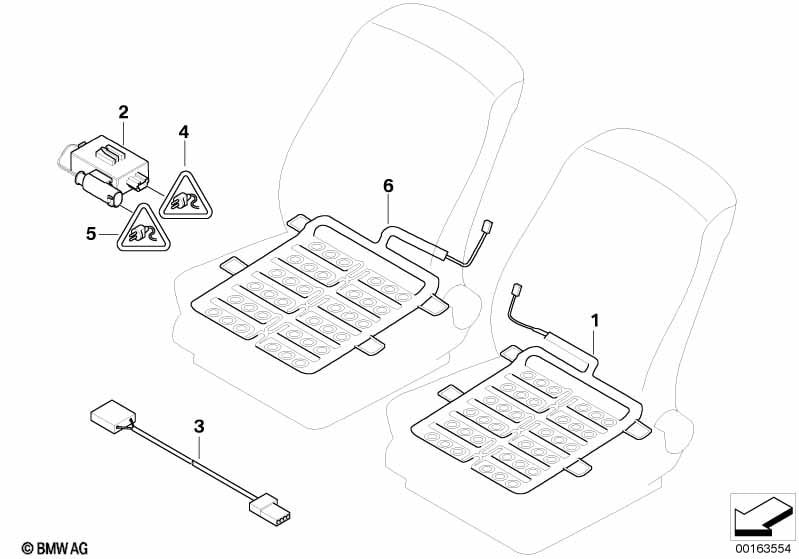

This Electr. compon. seat occupancy detection technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sensor mats for USA are included in seat covers of main group 52 since 09/05. |
|||||||||
| 02 | Control electronics, seat occupancy | 1 | 09/2005 | 65776927500 | $73.00 | Shop at ECS Tuning | ||||
| 03 | Wiring set | 1 | 09/2005 | 61126939372 | $5.67 | ENDED | Shop at ECS Tuning | |||
| 04 | Universal socket housing uncoded | 3 POL. | 1 | 09/2005 | 61138377072 | $1.37 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 3 | 09/2005 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 3 | 09/2005 | 61130056960 | Shop at ECS Tuning | ||||
| 05 | Universal socket housing uncoded | 2 POL. | 1 | 09/2005 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Rep. kit for socket housing | 2 POL. | 1 | 09/2005 | 61132359999 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 09/2005 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 09/2005 | 61130056961 | Shop at ECS Tuning | ||||
| 06 | Sensor mat f co-driver's seat identif. | 1 | 09/2005 | 65776924783 | $124.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
