Antenna cable GPS for BMW 5 Series E60 530i (2007)

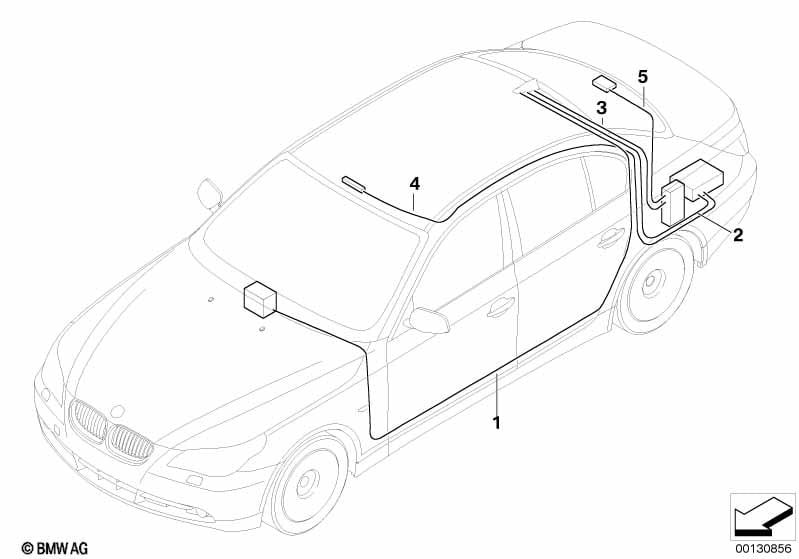

This Antenna cable GPS technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fabricate deleted antenna cable using coaxial cable repair part assortment (see notices in Text Image Unit) |
|||||||||
| 01 | Antenna line GPS-antenna/ MASK- CCC | L= 6150 MM | 1 | 61126941294 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Antenna cable GPS | L= 3620 MM | 1 | 61126941296 | ENDED | Shop at ECS Tuning | ||||
| 03 | Antenna cable GPS | L= 2470 MM | 1 | 61126941297 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Antenna cable GPS | L= 5020 MM | 1 | 61126941299 | ENDED | Shop at ECS Tuning | ||||
| 05 | Antenna cable GPS | L= 4190 MM | 1 | 61126941300 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
