Amplifier / bracket for BMW 5 Series E61 LCI 535d (2010)

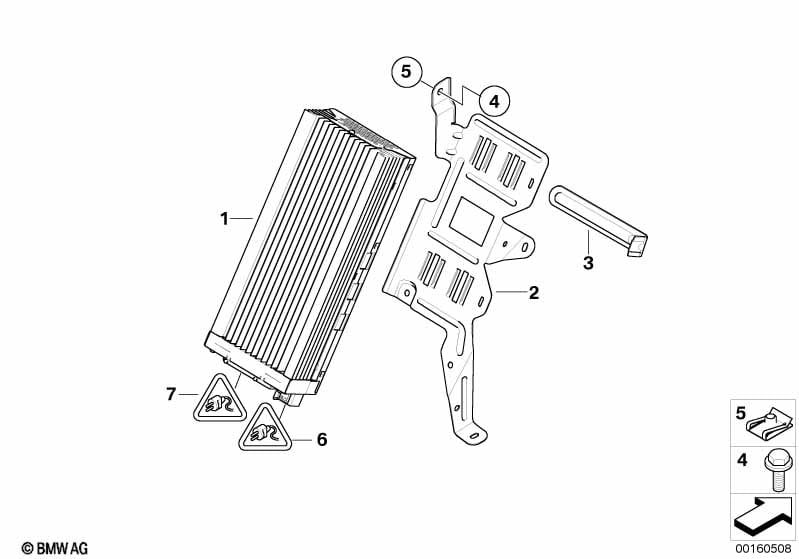

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.

Amplifier / bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
HiFi System Professional DSP
S677A=Yes
01 Top-hifi system amplifier 1 65129181743 $1232.18 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S677A=No

S6VAA=Yes

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S677A=No

S6VAA=No

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S677A=No

S6VAA=Yes

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S677A=No

S6VAA=No

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S677A=No

S6VAA=Yes

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S677A=No

S6VAA=No

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi System Professional DSP
and
CIC-Zusteuerung
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S677A=No

S6VAA=Yes

S6VBA=No

S752A=No
01 Amplifier hifi system 1 09/2008 65129198762 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S676A=Yes

S677A=No

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=Yes

S676A=Yes

S677A=No

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S676A=Yes

S677A=No

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=Yes

S609A=No

S676A=Yes

S677A=No

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S676A=Yes

S677A=No

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=Yes

S676A=Yes

S677A=No

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S676A=Yes

S677A=Yes

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S676A=Yes

S677A=No

S6VBA=Yes

S752A=Yes
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S676A=Yes

S677A=No

S6VBA=Yes

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
HiFi speaker system
and
HiFi System Professional DSP
and
CCC allocation
and
Individual audio system
S601A=No

S609A=No

S676A=Yes

S677A=No

S6VBA=No

S752A=No
01 Amplifier, stereo/HiFi 1 09/2008 65126920461 $238.32 Shop at ECS Tuning
02 Holder amplifier 1 65156925443 $11.77 Shop at ECS Tuning
For vehicles with
HiFi System Professional DSP
S677A=Yes
03 Locking bracket 2 65126908277 $1.92 Shop at ECS Tuning
For vehicles with
HiFi speaker system
S676A=Yes
03 Locking bracket 1 65126908277 $1.92 Shop at ECS Tuning
04 Hex bolt M5X14 4 07119902932 $0.53 Shop at ECS Tuning
05 Body nut M5 4 61131372033 $1.37 Shop at ECS Tuning
06 Socket housing 20 POLIG 1 61131383502 $7.28 Shop at ECS Tuning
only in conjunction with
-- Snap-in receptacle 2.5 ELA with cable 1,0-2,5 MM² 4 61130007571 $2.65 Shop at ECS Tuning
-- Terminal socket 2.5 0.5-1.0 MM² 4 61131392302 $0.42 Shop at ECS Tuning
07 Socket housing 1 61136901844 $3.42 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2- 0,5 QMM 1 61130005197 $1.65 Shop at ECS Tuning
-- Covering cap 1 61136905200 $3.68 Shop at ECS Tuning
-- Envelope f optical waveguide 2POL. /SCHWARZ 1 61138387214 $1.83 Shop at ECS Tuning
